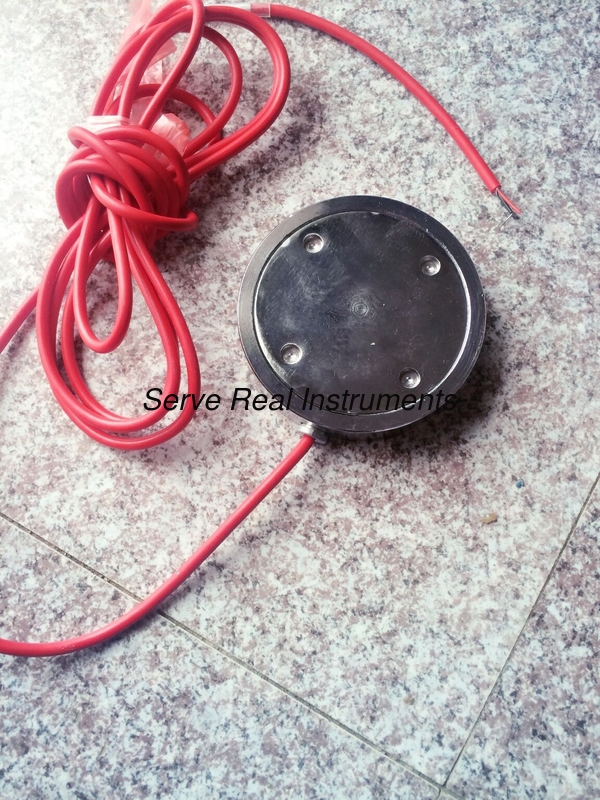

Strain type earth pressure cell, soil pressure sensor

Strain type earth pressure cell, soil pressure sensor

Strain type earth pressure cell, soil pressure sensor

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: TY-350

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 50-100USD
Packaging Details: carton case
Delivery Time: 3-5 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description


The strain type earth pressure cell is widely used for long term monitoring of earth pressure in civil engineering construction project to measure the contact pressure and stress of soil, the temperature influence can be corrected. It features good linearity and stable zero point. It’s kind of common geotechnical testing instrument.


Technical Specifications


Working principle: strain resistance type, full bridge output

Measurement range: 0.1,0.2,0.4,0.6,0.8,1.0,1.6,2.5,4.0,6.0,8.0,10Mpa

Working temperature:-25℃~+60℃

Temperature measuring accuracy: ±0.3℃

Resolution: ≦0.10%F-S

Total error: ≦1.5%F-S

Output signal: DC voltage

Cell size: Dia.28*T10mm, 17*8mm, 15*4mm

Data acquisition way: strain meter

Cable length: 3m
