Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | TGJ-1 |
| Price: | 500USD/set |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 100 sets/month |
| Minimum Order Quantity: | 1set |
| High Light: | Ko Consolidation apparatus,soil consolidation test,soil test instruments |
||
|---|---|---|---|
Description

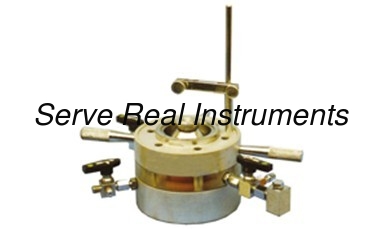

The K0 consolidation apparatus is used to test the static lateral pressure coefficient of Ø61.8mm soil specimen.
Main technical specifications
1. Specimen size: Ø61.8 x 40mm
2. Axial loading: 6KN
3. Pore pressure: 0-1000KPa
4. Axial displacement: 0–10mm
5. Ambient temperature: 20±5℃, RH＜85%
6. Proving ring relative error: ＜±1‰, Height relative error: ±2‰
7. Axial relative displacement error: 0.03mm, minimum resolution: 0.01mm
9. Volume change< 0.2ml
