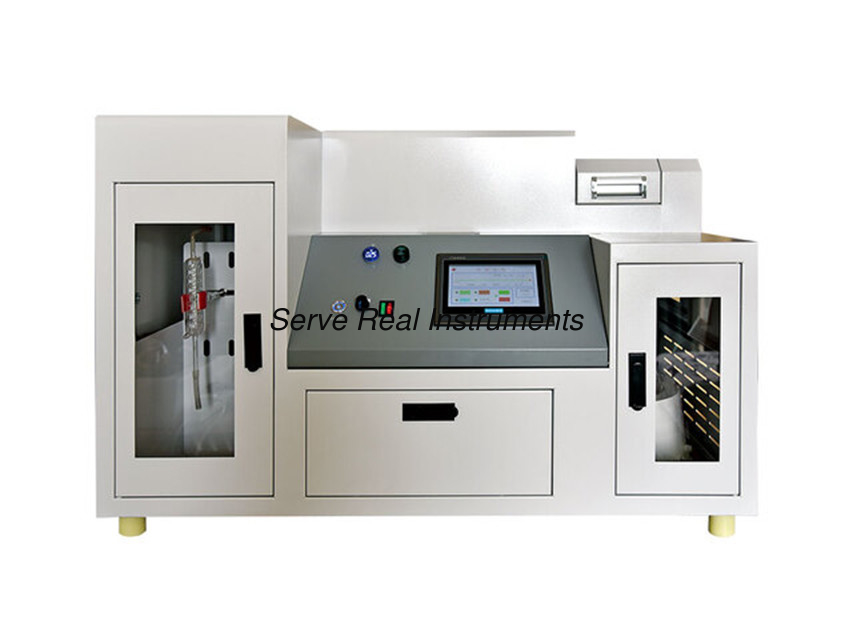

Full automatic fluoride chloride ion tester

Full automatic fluoride chloride ion tester

Full automatic fluoride chloride ion tester

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001:2000
Model Number: MJ-FL-01

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 5000-15000USD/set
Packaging Details: Standard exporting package
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, PAYPAL
Supply Ability: 50 sets/month
Minimum Order Quantity: 1set
Contact Now
Detailed Product Description
Function: Fluoride Chloride Ion Test Category: Coal Coke Analysis Instrument
Method: High Temperature Combustion Hydrolysis Method Operation: Touch Screen


Model: MJ-FL-01

Standards: GB/ T4633-2014, GB/ T3558-2014


Features of hydrolysis part

◎ The Chinese 7-inch LCD touch screen is used to display the temperature, sample delivery position and time in real time, with friendly interface and simple operation.

◎ The furnace temperature is controlled by PID, which has high temperature control accuracy and effectively extends the service life of silicon carbon tubes.

◎ Energy saving ceramic fiber furnace, with remarkable heat preservation and energy saving.

◎ Double tube structure, two samples can be sent at a time, and two samples can be made at the same time.

◎ The sample sending distance, position and speed can be set at will.

◎ The heating rate can be adjusted at will.

◎ Full automatic sample sending, sample setting, automatic sealant plug, automatic opening of rubber plug, and automatic reset of rubber plug.

◎ The evaporation time and amount can be set freely, the steam is stable, and the service life is long.

◎ Imported high-precision digital electrodes are configured to ensure the accuracy of the experiment.


Equipment features

◎ Equipped with automatic titration software, it can be used in the latest WIN10 computer operating system.

◎ The titration solution can be set, and the titration speed can be set at will according to the sample characteristics.

◎ It can directly read the titration milliliters and millivolts, and display the titration curve of the titration process. The experimental process does not require manual intervention, and the measurement results are automatically generated.

◎ The software has a built-in database, and the experimental data can be exported, printed and queried.

◎ High precision titration system is adopted to make titration control more accurate.

◎ Intelligent automatic titration, which can change the titration speed according to the change of potential, without manual intervention.

◎ It has the function of automatically stopping titration. When the instrument detects the potential end point, it automatically stops, saving resources and time.

◎ It has the function of pausing the experiment process, which is convenient and practical.

◎ With one button full speed cleaning function, it saves time and effort after the experiment.

◎ With mixing adjustment function, the mixing speed can be adjusted at will.

◎ The original solution collection module is used to make the control more accurate.

◎ The novel and reasonable appearance design not only makes the experiment more beautiful and convenient.

◎ It has a number of independent intellectual property rights to provide protection.



Temperature measurement accuracy 0.1℃
Control accuracy 1100±1
Heating time 25mins to reach 1100±1℃
Temperature setting range 100℃~1200℃
Potential resolution 0.1mV
Setting range of current opening 0~200
Test method High temperature combustion hydrolysis method
Fluorine measurement range 10~2000ug/g
Chlorine measuring range 0.003%~45%
Power supply AC220V±10%,50Hz
Overall power 3.5KW
Operating Weight 60kg
Titration system size 728*421*454
Overall dimensions 1066mm* 550mm* 675mm
