Wheel rutting tester, Asphalt testing instrument

Wheel rutting tester, Asphalt testing instrument

Wheel rutting tester, Asphalt testing instrument

Product Details:

Place of Origin: Jiangsu
Brand Name: SRI
Certification: GB, JTG
Model Number: WRT0719

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 5000-7500USD/Set
Packaging Details: Standard exporting package
Delivery Time: 5-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 200Sets/Month
Contact Now
Detailed Product Description

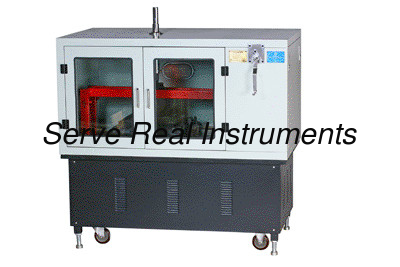

The asphalt wheel rutting tester is used to determine the road asphalt mixture wheel rutting resistance ability under high temperature, also it can test the asphalt mixture stability under high temperature at field. It’s kind of very common asphalt testing instrument.

Main features

1. Floor type, pc control, automatic temperature control, automatic timing, real-time display of rutting displacement, automatic record of displacement curve, report printing.

2. Synchronous display curve of time and displacement, time and temperature

3. PWM method on temperature control, high temperature stability.

4. High definition A/D, D/A module; uniform temperature in constant temperature chamber.

Main technical specification

1.Sample size: 300mm×300( or 150)mm×(50~100)mm

2. Working mode: crank connecting rod to drive the test bed

3.Rubber hardness: 78±2 (standard hardness) when at 60℃

4.Test-wheel move distance: 230mm±10mm

5.Back and forth rolling speed: (42±1)time/min

6. Loading device:  0.7MPa±0.05Mpa when at 60℃, the applied loading is about 780N, it’s adjustable

7.Displacement measuring range: 0mm~30mm

8. Displacement measuring accuracy: less than 0.01mm

9. Wheel Rutting test time: 60-240mins

10.Constant temperature control range: RT~80℃, ±0.3℃

11. Deformation measuring: ±0.3%, resolution is 0.005mm

12.Temperature control: ±0.5℃

13. Working power: AC(380±10%)V, 50Hz, 3kW

14.Overall size: 1315×785×1400mm(L*W*H)

15. Net weight: 500kg
