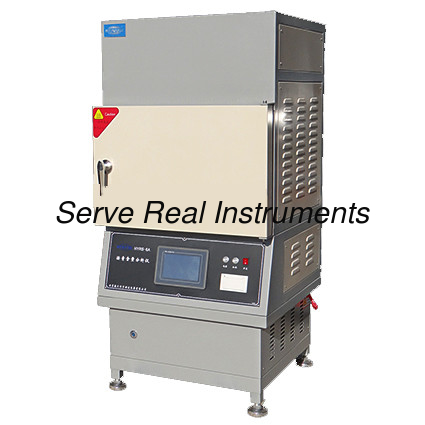

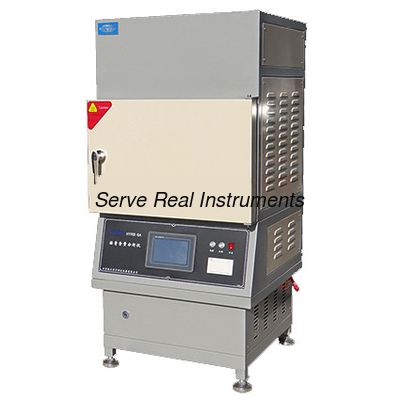

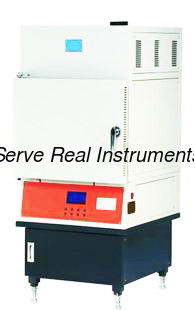

ASTM Ignition method Asphalt content furnace Bitumen content furnace

ASTM Ignition method Asphalt content furnace Bitumen content furnace

    • ASTM Ignition method Asphalt content furnace Bitumen content furnace
    • ASTM Ignition method Asphalt content furnace Bitumen content furnace
    • ASTM Ignition method Asphalt content furnace Bitumen content furnace
  • ASTM Ignition method Asphalt content furnace Bitumen content furnace

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: SRI
    Certification: GB, JTG
    Model Number: LHRS-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 5500-7500USD/Set
    Packaging Details: Standard exporting package
    Delivery Time: 5-10 working days
    Payment Terms: T/T, Paypal
    Supply Ability: 200Sets/Month
    Contact Now
    Detailed Product Description
    Display: LCD PC Connection: Optional
    Data Export: USB Printer: Built-in

    Standards: ASTMD630, AASHTO T308-99, TP53-95BSDD250



    Description


    The Ignition method Asphalt Content furnace is designed & made according to the American Asphalt Technical Center (NCAT) Standards(ASTMD6307,AASHTO T308-99, TP53-95,BSDD250), it’s a high precision asphalt content testing equipment. It features eco-friendly, safe, accurate, speedy, stable, and durable in use.


    Features


    The furnace body is made of aerial thermal insulation material, superior thermal insulation performance, external temperature keeps lower than 45℃ when internal reaches standard working temperature (538°c), high safety degree
    Quick preheating, speedy temperature rise
    Rear combustion chamber secondary combustion, plus high temperature filtration and ventilation system to guarantee meet the national environmental discharge requirements
    Automatic test, easy operation, automatic data print
    Powerful software, sync display asphalt content, asphalt-aggregate ratio, sample loss weight, test time
    Large screen LCD touch screen display, real time indication of loss & temperature curve, nice &
    Nice & friendly control system interface, English display
    Data automatic storage & print function
    Automatic temperature control, door status check, door-open auto power cut-off
    Active smoke exhaust system, built-in secondary combustion chamber, more environmentally friendly.
    Improved cabinet & structure, low surface temperature when in continuous working
    Inner calibration of Built-in scale, no need uninstall
    30 groups independent ignition plans can be stored, can provide multi ignition plans as per different mixtures, independent parameters setup for test, such as machine-stop condition, burning temperature, aggregate index, high temperature time, high temperature value
    Can store up to 100units test data, including test result, test plan, test curve, all can be inquired and printed, easy access to historical data;
    Computer optional to buy, with PC software can achieve parameters setup, test operation, data storage, report print(with curve)
    External Host USB port available, test data can be exported via USB port.



    Technical specifications

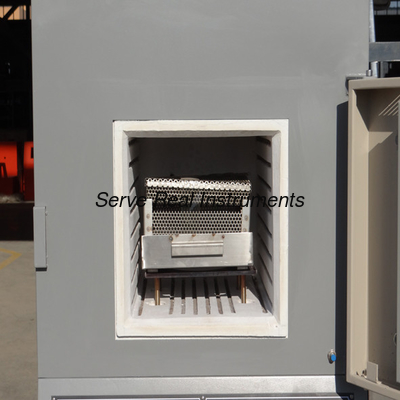

    1. Combustion chamber size: 320 × 450 × 280mm
    2. Power supply: AC380V ± 10%, 50/60hz
    3. Heating power: 9KW, 3-phase four-wire Y-connection
    4. Balance range: 10.0Kg, 0.1g accuracy: 0.01%
    5. Combustion chamber maximum working temperature: 600 ℃ (set value)
    6. Temperature measurement range: 0-1024 ° C, resolution 0.5 ° C
    7. Maximum sample weight: 3500g, recommended sample weight: 1200-1800g
    8. Test stability factor: 0.1%
    9. Dimensions: 1900 (H) × 910 (W) × 910 (D) mm
    10. Net weight of the instrument: 220Kg
    11. Ambient temperature: ≤35 ℃
    12. Relative humidity: ≤85%



    ASTM Ignition method Asphalt content furnace Bitumen content furnace
