Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB, JTG |
| Model Number: | LBH-10/20W |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1500-2000USD/Set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200Sets/Month |
| Display: | LCD | Heating Medium: | Oil |
|---|---|---|---|
| Temperature Control: | PID | Language: | English |
Standards: JTJ053-93

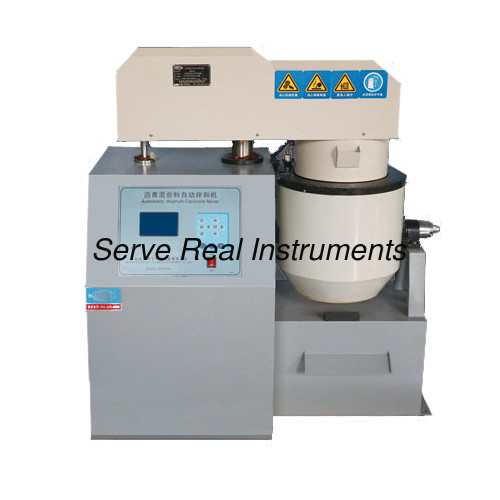

This machine is used to mix the asphalt mixture, it features compact size, easy in operation. It’s widely used in asphalt production, civil engineering, research institution.
Main Features
PID temperature control mode, accurate temperature control, temperature accuracy up to ±3℃, after 40mins temperature fluctuation < ±1.5℃
Temperature compensation function
Automatic lifting and down
Oil bath heating, uniform temperature, more safe
Screw ball rod assembly, less noise, stable performance

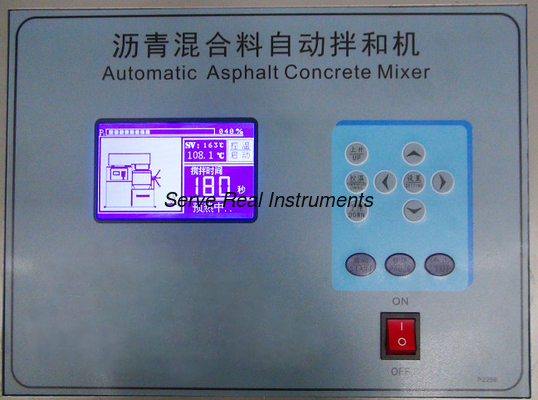

LCD display, friendly human-machine interface, English language
PID auto-tuning function, automatically optimize of temperature parameters
Technical specifications
1. Mixing capacity: 10 liters (20 liters)
2. Heating pot temperature range: room temperature to 250 ℃ (arbitrarily set)
3. Temperature control accuracy: ± 3 ℃
4. Mixing time: 1 ~ 999 seconds (optionally set)
5. Rotating speed of stirring pulp: revolution 45 ± 5 revolutions / min; rotation 75 ± 5 revolutions / min
6. Dimensions: 1220X620X1320mm
7. Weight: 190Kg (10L) 236Kg (20L)
8. Power supply voltage: AC220V / 50HZ
9. Power: 3600W (maximum)
10. Ambient temperature: 5 ~ 40 ℃
11. Ambient humidity: ≤ 85%
