Place of Origin: | Jiangsu |
Brand Name: | SRI |
Certification: | CE, GB, ISO |
Model Number: | GSC-300W/GSC-500W |
Minimum Order Quantity: | 1set |
---|---|
Price: | 7500-8000 USD/set |
Packaging Details: | Standard exporting packing |
Delivery Time: | 10-15working days |
Payment Terms: | T/T |
Supply Ability: | 50set/month |
High Light: | Steel wire relaxation testing machine,steel wire relaxation tester,steel wire testing machine |
---|

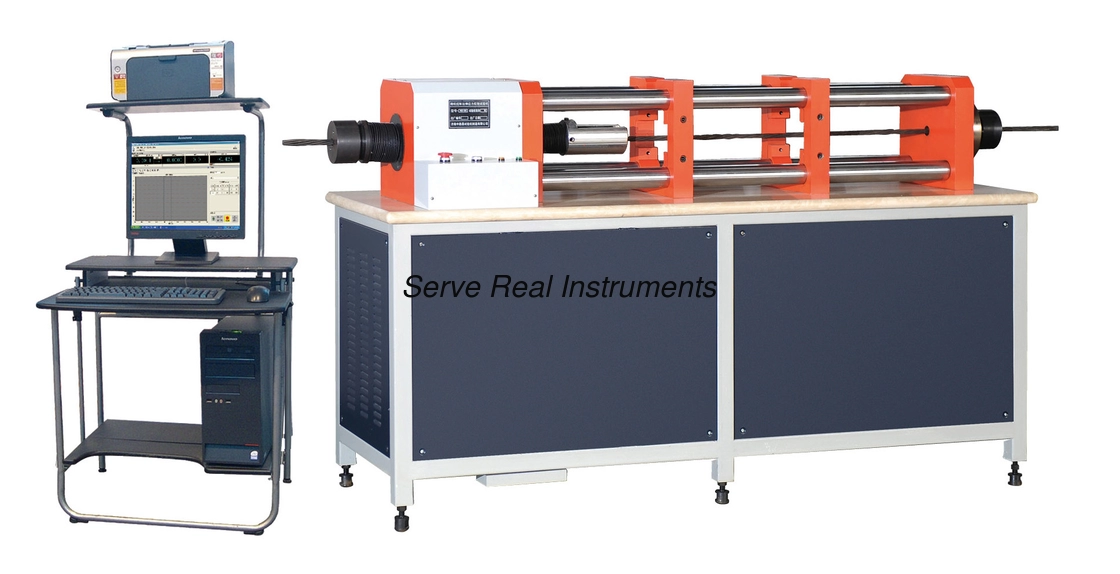

Horizontal Computer control steel wire relaxation testing machine
Description
The Steel wire relaxation testing machine is mainly used to test the tensile relaxation strength of steel wire and other metal wire & cables. It’s a new type testing equipment for modern construction industry.
Features
The main machine is of four column or two column rigidness frame structure, it has horizontal or vertical type, the screw rod adjust the puller to move, the loading speed regulation is stepless.
It adopts full-digits close-loop computer servo control, using the Panasonic servo motor & driver, combine with the high precision sensor, achieves high precision, wide range, multifunction servo control.
It can measure the test piece deformation within the scale distance directly, which can avoid the effect of chuck slip to achieve high test precision.
The horizontal steel wire relaxation tester uses computer technology to preset various kinds of parameters, automatic measuring, control, data processing, draw kinds of curves and print report. The testing software can estimate the relaxation rate within 1000 hours.
Technical Specifications
Spec. |
GSC-300W |
GSC-500W |
Max. Loading |
300kN |
500KN |
Effective loading range |
6-300kN |
10-500KN |
Loading relative error |
±1% |
±1% |
Loading resolution |
5N |
5N |
Displacement relative error |
±1% |
±1% |
Loading speed |
100-5000n/s |
100-5000n/s |
Screw rod stroke |
100 mm |
100 mm |
Test space |
2050(mm) |
2200mm |
Power supply |
AC 220V±10%/50Hz, 1.5kw |
AC 220V±10%/50Hz, 3kw |
Overall size |
2000×1100×600(mm) |
2450*1200*600mm |
Weight |
1250kg |
1500kg |
