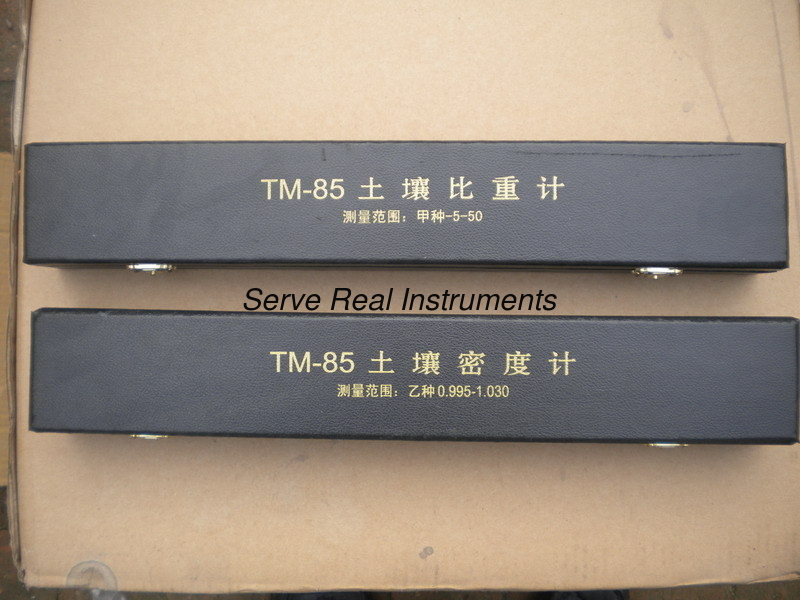

TM85 Soil Hydrometer, Soil Specific Gravity Meter, Particle size analysis set

Introduction

The soil hydrometer is used to test the soil density in lab, it’s kind of professional soil testing instrument.


Technical Specifications

1. Blister Volume(Vb): 62.37cm3
2. testing range: 0.995~1.050/0.995~1.020
3. Blister Center To The Lowest Scale Distance(Lo): 9.10cm
4. Scale Total Length: 13.50cm
5. Professional Measuring Cylinder Settlement Distance Calibration Formula: L=A-Br; A=21.50; B=0.273
6. Wherein L Is The Settlement Distance Calibration Value, Unit Is Cm, R Is The Hydrometer Readout


Other Equipments For The Soil Density Test

1. Measuring Cylinder, Effective Volume 1000ml, 60mm Inner Dia., 450mm Height

2. Analytical Balance, 200g/0.01g

3. Others, Thermometer, Stirrer, Sand Bath, Disperse Agent, Pure Water, Stop Watch
