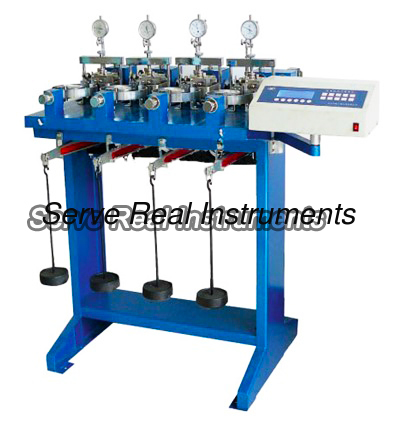

Four gang direct shear test apparatus, Soil shear test machine

Four gang direct shear test apparatus, Soil shear test machine

Four gang direct shear test apparatus, Soil shear test machine

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001:2000
Model Number: TZJ-5

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2500USD/set
Packaging Details: Standard exporting package
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, PAYPAL
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Power: Electronic Usage: Soil Shear Strength Test
High Light:

four gang shear test apparatus


automatic soil shear test


soil testing instruments


This direct shear testing machine can perform soil shear test for four specimens at one time, the shear speed is stepless adjustable. It has DAQ system, it’s an advanced soil shear testing instrument.

Technical parameters

1. Soil specimen area: 30cm², soil specimen diameter: 61.8mm

2. Soil specimen height: 20mm

3. Computer controlled vertical loading: 0-400kPa

4. Max horizontal displacement: 8mm

5. Maximum horizontal shear force: 1000kPa

6.Computer control Tetragenous timing shear, stepless speed-regulation 0.001-4.8mm/min, has speedy forward and fast backward function.

7.192*64 high resolution LCD display

8.16 digits thin film key control, equips displacement sensor and loading cells

Packing list

1. Main frame 1set

2. Loading device 4sets

3. Dial gauge 4sets and installation components, (0-10mm/0.01mm accuracy 0.1%)

5. Loading sensor 4sets and installation components, (0-5KN, accuracy 0.3%

6. Shearing control system, 1set

7. Acquisition system 1set, LCD display system 1set

8. Acquisition and processing software, Win7 system is compatible
