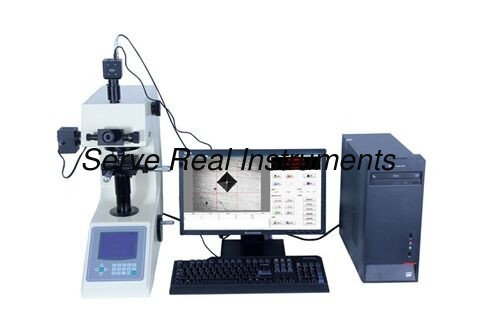

Video Microhardness testing machine with CCD system, Vickers hardness tester

Standards: GB/T4340.2, ISO6507-2, ASTM E384

General description

This hardness tester integrates durometer and computer automatic measurement system together via CCD camera, the whole test procedure can be done through keyboard and mouse operation, easy and high accuracy, can avoid human-operation deviation to delivery the best measuring performance.

Applicable materials

1. Ferrous metals, non-ferrous metals, IC flakes, surface coating, laminated metal;

2. Glass, ceramics, agate, precious stones, thin plastics, etc.;

3. Carburized layer and hardened layer depth and gradient hardness test.

4. Parallel planes and micro parts and ultra-thin parts.

Technical specifications

1. Measuring range: 5-5000HV

2. Test load: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N

(10,25,50,100,200,300,500,1000gf)

3. Optical measuring system

Objective: 10×, 40×

Total amplification times: 100×, 400×

Measuring range: 200μm

Graduation: 0.025μm

4. XY coordinate platform

Dimension: 100×100mm

Stroke: 25×25mm

Graduation: 0.01mm

5. Others

Overall dimension: 530×290×490mm

Sample max allowed height: 120mm

Indenter to wall space: 110mm

Power supply: AC 220V/50HZ

Net weight: 40kg

Accessories list

XY coordinates, Fine axis test bench, thin section test bench, small flat nose clamp test bench: 1each

Large V-blocks, small V-blocks, 1 each

diamond pyramidal pressure heads 1pc

standard Microhardness block, 2pcs
