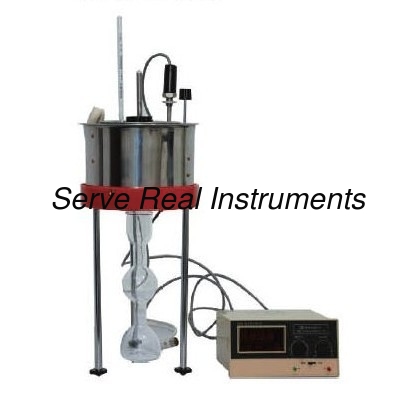

Engler viscometer ASTM D1665, Bitumen test instrument

Engler viscometer ASTM D1665, Bitumen test instrument

Engler viscometer ASTM D1665, Bitumen test instrument

Product Details:

Place of Origin: China
Brand Name: SRI
Certification: ISO 9001
Model Number: WNE-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 500-1000USD
Packaging Details: wooden case
Payment Terms: Western Union, T/T, L/C, D/A, D/P, Paypal
Supply Ability: 100sets/month
Contact Now
Detailed Product Description

Standards: GB/T266, JTG E20-11 T6022, ASTM D1665


The Engler viscometer is used to determine the specific viscosity of tars and their products according to the ASTM D1665 standards, the viscometer is comprised of stirrer and thermometer, bench type, inner and outer pan are totally made of stainless steel. Digital temperature controller, features easy parameters setup and high accuracy.


Technical specifications


Standard water value: (51±1)s

Test temperature: (0~100)℃,±0.2℃

Receiving flask volume: (200±0.2)ml

Internal pan: stainless steel

Heater power: 550w (AC220v, 50hz)

Stop water: 0.01 s accuracy

Overall size: l200mm×w200mm×h400mm (not include temperature controller)


Standard configuration


No. Item Qty
1 Stirrer 1unit
2 Temperature controller(including 1pc sensor) 1set
3 Receiving flask (200ml) 1pc
4 Engler thermometer (0~60)℃, graduation 0.5℃ 1pc
5 Engler thermometer (50~110)℃graduation 0.5℃ 1pc
6 Wooden stopper 1pc
7 Thermometer clamp 1 pc
