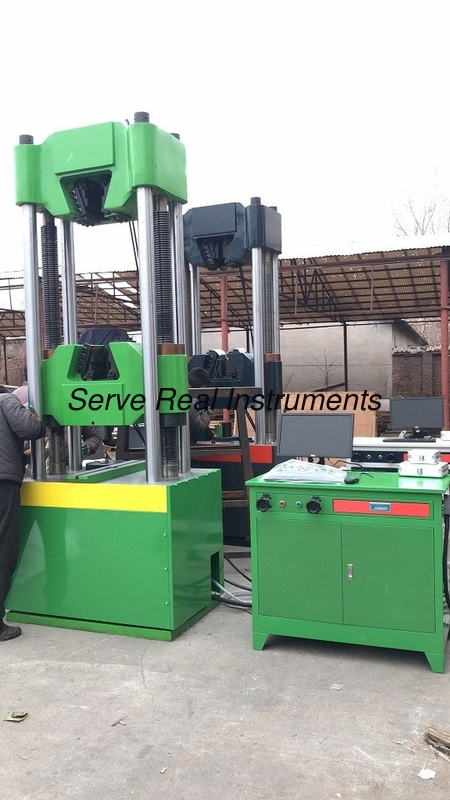

Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | UTM-2000D |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 25000-30000USD |
| Packaging Details: | Standard wooden case |
| Delivery Time: | 20 WORKING DAYS |
| Supply Ability: | 20SETS/month |
| Color: | Customized | Power Supply: | AC 380V, Or Customized |
|---|---|---|---|
| Operation: | Full Automatic | Data Management: | PC Software |
Max testing force 2000kN Accuracy degree 0.5(0.5%) Test force measuring range 0.4%-100%, stepless, equivalent 4 steps Force indication value relative error ＜±0.5% Test load resolution 1/500000 Deformation indication value relative accuracy ＜±0.5% Deformation resolution 1/300000 Max tensile test space 1100mm Compression space 950mm Piston stroke 300mm Cylinder sample max clamping range Φ20mm-Φ90mm Flat sample max clamping thickness 0-70mm Flat sample max clamping width 140mm Platen size Φ300mm, HRC>55 Clamping mode Hydraulic Main machine overall size L1200mm*W850mm*H3400mm Controller size 1100mm*750mm*1000mm Motor total power 4.5KW Net weight 9000KG
