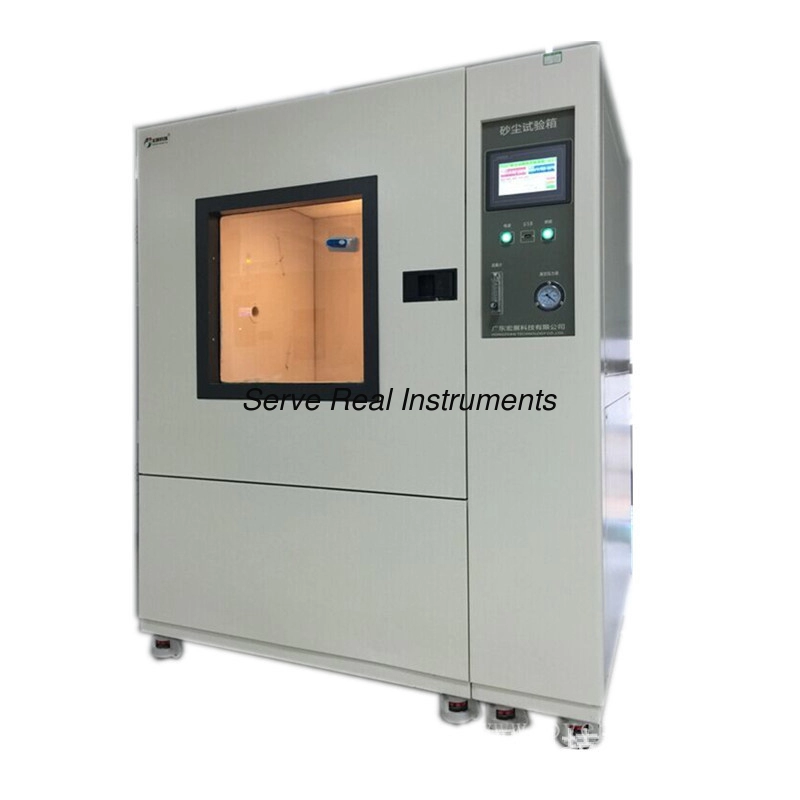

Dust test chamber IEC60529 IP5X IP6X, Environmental test equipment

The dust test chamber is used to test the sealing performance of the enclosure of various kinds of industry products, mainly used to perform the IP5X and IP6X test.

Standards

IEC60529:2001, 60068-2-68La2, GB2423.37-2006, GB4208-2008

DIN40050-9,JIS D0207,ISO20653, SAE J575e, GB10485 , meet the protection degree of IP5X, IP6X, and the equipment requirements of IECEE-CB system of IECEE-CTL.

Functions

Dust concentration monitoring: Dust concentration real time monitor, automatic constant dust concentration

The instrument has the ability to adapt to changes in ambient temperature, high altitude, humidity and atmospheric pressure. In the range of ambient temperature 5 ℃ ～ + 50 ℃, the instrument can run reliably and stably without the monitoring results being affected

Data recording function: It has RAM with battery protection, which can save the set value and sampling value of the device and the time of sampling time; the recording time is not less than 120 days ( the sampling period of 2min)

With a USB interface, the test curve data stored in the controller can be transferred to a USB flash drive. Directly display and print the test data / curve through the dedicated software of the PC (the print data has an unmodifiable mark); or convert the recorded data into an Excel or Access data file that can be read by Microsoft Office.

Test program can be transferred between PC and controller via U disk.

Auxiliary functions: fault alarm and cause, processing prompt function, power failure protection function, upper and lower limit temperature protection function, calendar timing function (auto start and stop operation), self-diagnostic function.

Technical specifications

Work chamber size: 1000×1000×1000(W×H×D)mm

External chamber size: 1550×1800×1400(W×H×D)mm

Dust blow direction: Automatic shift

Test time: 1s-9999min adjustable of blow vibration test time 0-99h59min freely adjustable

Test blow rate: (1m～10m)/s adjustable

Metal wire diameter: 50μm

Nominal spacing: 75um

Talcum powder weight:(2kg～4kg)/m3

Impact test time:0～99H59M

Fan circulation time: 0～99H59M

Working temperature: -15℃～＋50℃

Humidity: 10%RH～80%RH(20℃)

Amplitude: 0～3000m

Operation duration: >15year

Power supply: AC380V±10% 50Hz

Total power: 5KW

Operation condition: Room
