| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | DHGD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-4000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20sets/Month |
| Standards: | GB, ISO, EN | Test Material: | Electronic Products |
|---|---|---|---|
| Customized: | Yes | Power Supply: | AC 220V, 380v, 50HZ |

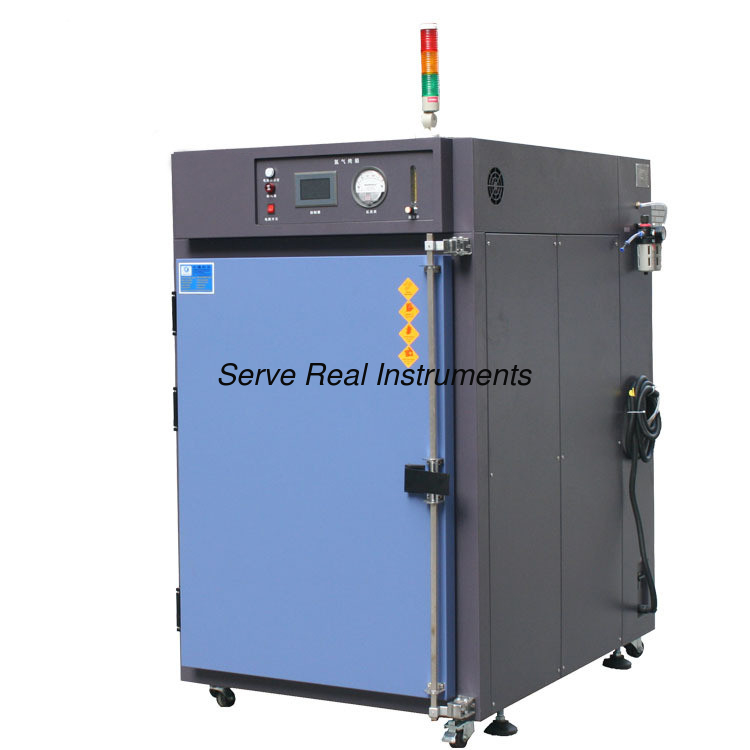

Features
Digital display controller Samwon ST590E-00 or touch screen programmable controller
Hot wind circulation heating, can reach 200℃ in 30mins
Glass wool insulation, enclosure temperature won’t over room temperature by 10℃
Specifications
| Model | DHGD-072 | DHGD-270 | DHGD-480 | DHGD-600 | DHGD-720 | DHGD-1000 |
| Inner size(cm) W×H×D | 40×45×40 | 60×90×50 | 80×100×60 | 100×100×60 | 100×120×60 | 100×100×100 |
| Overall size(cm) W×H×D | 72×116×56 | 93×163×67 | 110×172×77 | 130×172×77 | 116×170×116 | 116×150×166 |
| Temperature range | RT+25℃～200℃(300℃) | |||||
| Temperature fluctuation | ±0.3℃ | |||||
| Temperature uniformity | ±1%℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Oxygen concentration | 0-2000 PPM | |||||
| Temperature rise time | 30mins | |||||
| Enclosure material | Cold rolled plate + baking paint | |||||
| Liner material | SUS#201(when >200℃ SUS#304 used) | |||||
| Heat insulation material | Glass wool | |||||
| Circulation system | Centrifugal fan | |||||
| Heater | SUS#made | |||||
| Controller | Digital display, keypress | |||||
| Nitrogen system | Flow meter+pressure difference meter(oxygen analyzer optional) | |||||
| Accessories | Control status indicator, shelve(2pcs, height adjustable) | |||||
| Safety device | Phase sequence protection, over temperature, over current, overload | |||||
| Power supply | AC 3Ψ 380V 60/50Hz | |||||
| Customized service | Yes | |||||
