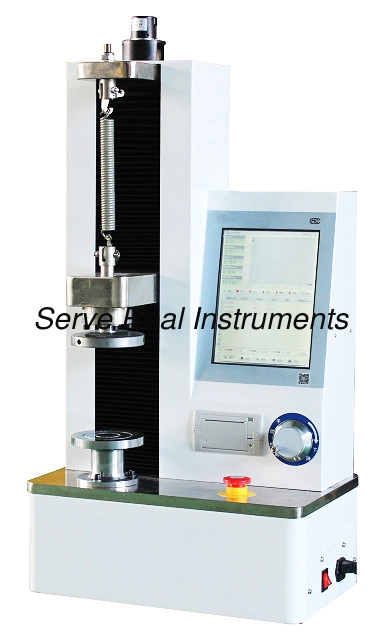

5000N Automatic spring tester JIS-B7738 Precision spring testing equipment

5000N Automatic spring tester JIS-B7738 Precision spring testing equipment

5000N Automatic spring tester JIS-B7738 Precision spring testing equipment

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: ST-5C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 4000USD
Packaging Details: Wooden case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100set per month
Contact Now
Detailed Product Description
Test Material: Spring Operation: Touch Screen
Power Supply: AC 220V,50,60HZ Operation Language: English

Standards: JB/T 7796,JIS B7738-2001,JJF1134-2005



It’s a precision spring testing equipment, specially suitable for testing of precise spring, shrapnel, and elastomer in laboratory.



Specifications



Load capacity range 0~5000N
Force measure range 1%-100%F.S
Loading unit N, kN, gf, kgf, lbf, kip
Loading way ball screw rod transmission, step motor loa ding
Display 9inch industry touch screen
Data process automated acquisition, process, can be saved, inquired, printed
Test force resolution 0.1N
Zero drift ±0.1%
Test force relative error ±1.0%
Test force repeatability error 1.0%
Displacement resolution 0.01mm
Displacement error ≤±(50+0.15l)um
Stretch & compression test space 300mm
Platen size 100mm
Upper & lower parallelism ≤0.05mm
Test rate 0.01-500mm/min
Machine overall size Approx 435*275*850mm
Machine net weight Approx 100kg
Power supply AC 220V±10% 50Hz
Protection function software & hardware dual
Noise 50dB(A)



Features



Better human-machine interactivity, better test accuracy, better stability, higher efficiency

Touch screen operation

Self-adapted test curve, complete replay of the whole test process

Powerful data analysis function

4 test method, 2 test type, can setup backhaul test, repeat test

Full-range run in uniform rate, real representation of test process

Built-in sample base, preset 20 type sample, directly retrieval when test

Test data auto saving, can store up to 100units data, data can be reviewed, printed, exported;

Full-digit sine control of motion, smooth running, faster response

Dual protection of load cell, avoid misoperation to damage the sensor and machine
