| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | FMS-30-150A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50set per month |
| Control: | Computer+PLC | Display: | Computer |
|---|---|---|---|
| Valave Dia.: | DN32-DN150 | Max Pressure: | 30Mpa |
Standards: GB／T1 3927 -92, GB12242-89,ZBJl6006-90,CJ/T3055-95
Model: FMS-30-150A

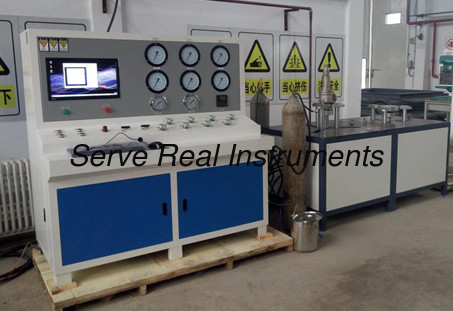

This test bench is used for pressure verification test of safety valve, it can test the the set pressure, return pressure, tightness, applicable valve size is DN32-DN150, the max test pressure is 30Mpa
Features
Computer and PLC control, independent control unit, modular control; multi independent channel; test data and graph automatic saving;
Automatic booster pump, freely adjustable & controllable of output pressure;
Compact size, light in weight;
Quality standard parts, no welding connection, easy disassemble, high safety index, long tooling life, easy maintenance;
Data acquisition software to acquire test data, print test report, indicate pressure curve;
Portable automatic data recorder optional.
Technical specifications
| Test pressure | 0~30MPa (optional) | |
| Valve dia. | DN32-DN150 | |
| Input pressure range | 0.1-0.69 Mpa | |
| Max air flow | 1m3/min | |
| Control accuracy | -1%<a<+2% | |
| Pressure resolution | 0.1MPa | |
| Pressure sensor | pressure sampling frequency 2hz | |
| Test medium | water, air, nitrogen | |
| Pressure control mode | pneumatic and pressure | |
| Operation | Manual and computer | |
| Sample number | On request | |
| Temperature accuracy | Average ±1℃,max ±2℃ | |
| Sample installation | manual or automatic clamping | |
| Construction | Power system, circulation system, pressure control system, sample installation, controller | |
