Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | MLS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-5000USD |
| Packaging Details: | Standard wooden case |
| Delivery Time: | 10 WORKING DAYS |
| Supply Ability: | 100SETS/month |
| Temp.: | Max 1400C, +/- 1C | Power Supply: | AC 220/380V, Or Customized |
|---|---|---|---|
| Hearth Size: | 200x200x200mm | Programmable: | Yes |
| Temp. Rise Rate: | 0-20C/min | Temp. Measure Part: | S Type Thermocouple |

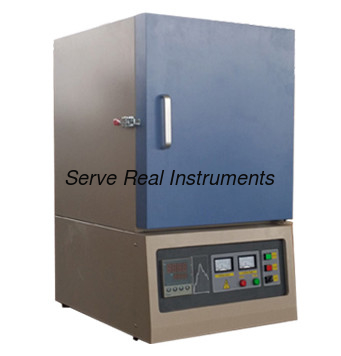

This muffle furnace suitable for heat process, sintering, heating, heat treatment.Precision furnace door design, better heat insulation; Polycrystalline ceramic fiber, uniform temperature distribution, fast heating, high work efficiency.
Features
Hearth is made of quality imported power-saving material;
Dual-layer inner furnace enclosure, better heat insulation, even at 1400C, the furnace enclosure still can be touched; Air cooling system, fast temperature raise & down;
Quality Sic heat element, high temperature resistance, oxidation resistance, corrosion resistant, long tooling life, stable performance, easy installation & maintenance
PID controller, easier operation, accurate temperature control, multi-step program controllable
Output voltage and current real time monitoring;
Technical specification
| Furnace structure | Double layer steel casing with double cooling fans to ensure furnace surface temperature below 50oC. |
| Chamber size | 200x200x200mm(or customized) |
| Overall size | 560*660*820mm |
| Max. temperature | 1400Degree C |
| Protection | Over-temperature and thermocouple-broken |
| Temperature control |
PID automatic control and auto-tune function. 30 programmable segments for precise control |
| Heating rate | 0-20oC/min |
| Temperature accuracy | +/- 1oC |
| Heating element | SiC |
| Working voltage | 220VAC, 50HZ |
| Max. Power | 5kw |
| Temperature measurement | S type thermocouple |
| Net weight | 120kg |
| Furnace structure | Vertical, bench, integration, seperated (optional) |
| Door opening | Side, upper, bottom, slide |
| Standard accessories | Crucible tongs, high temperature glove, thermocouple, pad |
Accessories
Corundum crucible Door block Touch screen(Optional)
High temperature glove Crucible tongs Thermocouple
