Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | MLS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 4000-7000USD |
| Packaging Details: | Standard wooden case |
| Delivery Time: | 10 WORKING DAYS |
| Supply Ability: | 100SETS/month |
| Temp.: | Max 1700C, +/- 1C | Power Supply: | AC 220/380V, Or Customized |
|---|---|---|---|
| Hearth Size: | 200x200x200mm | Programmable: | Yes |
| Temp. Rise Rate: | 0-20C/min | Temp. Measure Part: | B Type Thermocouple |
Description

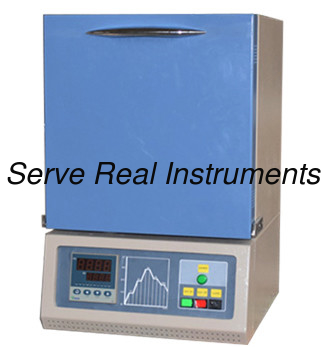

This muffle furnace is mainly used in laboratories for physical & chemical properties analysis, as well as sintering, dissolve, heat processing of metal and ceramics, electric elements, powder etc.
This muffle furnace adopts down opening design, easier for load and unload material; hearth made of new type ceramic fiber, better heat insulation, avoid scald. Can greatly reduce the Sintering temperature, max up to 500 degree C; up to 70-90% less power consumption; can greatly reduce the sintering time, up to 50%; greatly improve the tissue density, grain refinement, improve the material performance.
Technical specification
| Furnace structure | Double layer steel casing with double cooling fans to ensure furnace surface temperature below 50oC. |
| Chamber size | 200x200x200mm(or customized) |
| Overall size | 560*660*820mm |
| Max. temperature | 1700Degree C(normal work temperature 1600 degree C) |
| Protection | Over-temperature and thermocouple-broken |
| Temperature control |
PID automatic control and auto-tune function. 30 programmable segments for precise control |
| Heating rate | 0-20oC/min |
| Temperature accuracy | +/- 1oC |
| Heating element | SiC |
| Working voltage | 220VAC, 50HZ |
| Max. Power | 5kw |
| Temperature measurement | B type thermocouple |
| Net weight | 90kg |
| Furnace structure | Vertical, bench, integration, seperated (optional) |
| Door opening | Side, upper, bottom, slide |
| Standard accessories | Crucible tongs, high temperature glove, thermocouple, pad |
Accessories
Corundum crucible Door block Touch screen(Optional)
High temperature glove Crucible tongs Thermocouple
