Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | JT-BZ-02 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-6000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100sets/Month |
| Display: | Touch Screen | Function: | Traffic Signs Retroreflective Property Test |
|---|---|---|---|
| Power Supply: | Battery Powered | GPS: | Optional |

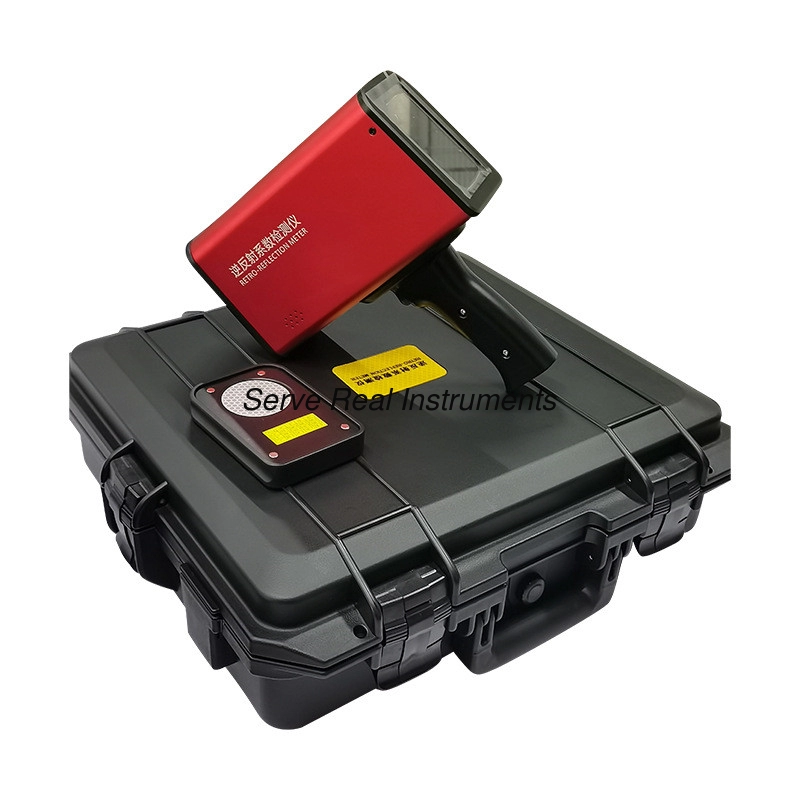

It's a multi-angle retro-reflectometer used for measurement of retroreflection Coefficient of traffic signs.
Features
Anti-scratch full metal housing
3 inch high brightness LCD capacitive touch screen
Large-capacity lithium battery, continuous use time is not less than 2 days
Preset parameters, screen display information including date, time, power, etc.
Automatic calibration zero setting and adjustment of measurement standards
Two ways to input characters by soft keyboard and handwriting
The storage records are more than 99999, and the inspection records can be inquired in detail at any time
Support data storage in Excel form
USB interface for data transferring
Long life, low illumination, high sensitivity photoelectric measurement assembly
High-precision, high-stability analog data acquisition and A/D conversion circuit
Support multiple measurements to calculate the average
Magnetic calibration and detection method, more convenient
Real-time measurement display
Bluetooth printer (optional)
GPS positioning (optional)
Specifications
| Measurement items | retroreflection coefficient cd/x /m² |
| Measuring value range | 0-1999.9 |
| Set incident angle | -4°, 5°, 15°, 30° (standard configuration) |
| Set the observation angle | 0.2°, 0.5°, 1° |
| Measuring light source | standard A light source |
| Measuring spot diameter | 35mm |
| Repeatability measurement error | ≤2% |
| Reproducible measurement error | ≤3% |
| Continous measurement time | >12h |
| Built-in power supply capacity | 7000mA.h |
| Data storage space | 16GB |
| Charging power supply | DC 8.4V |
| Operating environment temperature - | 5℃-60℃ |
| Operating environment humidity | <95%, no condensation |
| Overall machine volume | 220 mm×250 mm×82mm (×H×W) |
| Weight of the whole machine | 1.92kg |
