| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO |
| Model Number: | LQ-1S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2000-2500USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200sets/month |
Description

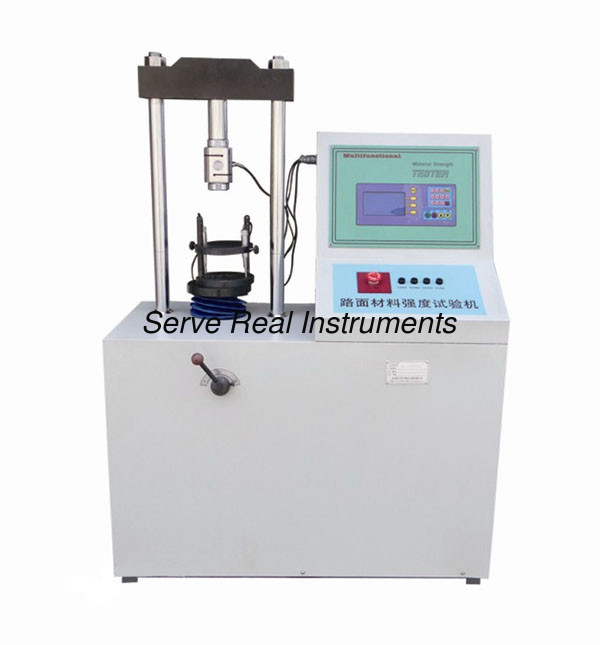

This unconfined compressive strength tester is kind of multifunctional road testing equipment, it can be used to test the unconfined compressive strength for various kinds of binder material stabilized soil specimens, it also can test CBR value, as well as Marshall stability and flow value of asphalt mixture.
Features
Intelligent measuring & control technology, sensor force measuring, digital display
Overload & limit protection
Easy operation, stable performance
Can storage 15groups test records
Can do UCS, CBR, Marshall stability test etc( with specific clamps)
Has fast & low speed test modes
Micro printer can be equipped
Technical Specifications
|
Max. load |
100KN |
|
Force resolution |
0.01KN |
|
Accuracy |
±1% |
|
Max. Vertical stroke |
200mm |
|
Deformation measuring range: |
0~15mm |
|
Elevation speed |
High 50mm/min, low: 1mm/min |
|
Manual elevation speed |
1/6 mm per cycle |
|
Rating of machine |
JW7134 550W, 380V, 1400RPM |
|
Overall dimension |
1200x700x1450mm |
|
Net weight |
120kg |
