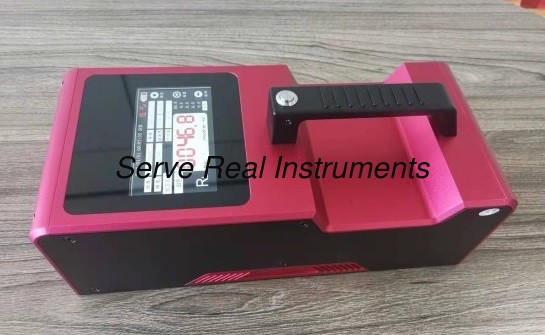

Portable mark line retro-reflectometer (RL mode) ASTM E1710-18

Portable mark line retro-reflectometer (RL mode) ASTM E1710-18

Portable mark line retro-reflectometer (RL mode) ASTM E1710-18

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: JT-BX03

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-6000USD
Packaging Details: Polywood case
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100sets/Month
Contact Now
Detailed Product Description
Display: Touch Screen Function: Mark Line Retroreflective Index Test
Power Supply: Battery Powered GPS: Optional

Standards: ASTM E1710-18


This road marking line retro-reflectometer is a portable on-site measuring instrument, it’s suitable to measure the retroreflection characteristics of road markings under three conditions: dry, wet and continuous rainfall. The measured parameter are named RL-dry, RL-wet, RL-continuous rainfall.

This retro-reflectometer adopts high-precision external light source and high stability optoelectronic integration design. And embedded program control software, support rapid detection and broadcast results through built-in voice, display the longitude, latitude, temperature and humidity of the detection point. Features 1-second startup without preheating, lower measurement error, and instant use.



High brightness LED touch screen, screen brightness can be adjusted

The interface displays at least 5 groups of data currently measured, and automatically records the total number of measurements

On-site GPS positioning, real-time display of longitude, latitude and altitude

Real-time display of on-site temperature and humidity

Real-time voice broadcast of measurement data, you can set to open or close the voice function by yourself

Rapid measurement, the retroreflection coefficient value is measured within 2 seconds

On-screen touch keyboard to input Chinese characters, English and characters

Simple calibration procedure, in the same environment, no need to calibrate each time, no need to calibrate when changing colors

The stored information includes measurement data, operator, road section information, detection time, temperature and humidity, etc.

The field detection data can be locked and saved to the data SD card

Chinese and English switching operation independently

Intelligent standby management, the system automatically enters the low-power operation mode when there is no operation



Measured index RL, three states: dry, wet and continuous rainfall
Measurement value range 0---2000 mcd.m-2.lx-1
Measure angle Observation angle 1.05° Incident angle: 88.76°, complementary angle is 1.24°
Standard A light source, light source color temperature 2856±50K
Measuring aperture area 450mm x 65mm
Measurement accuracy <±5%
The color of the measuring mark can be selected white, yellow, red, green and blue
Display value average value of multiple measurements
USB data storage export, U disk data storage space standard 8GB, more than 100,000 pieces of data, the space can be expanded
Normal working time ≥72h
Built-in battery capacity 9600mAh lithium battery, and supports fast charging
Power supply voltage DC 12V
Charging voltage/current DC12.6V/2A
Ambient temperature -15℃~+60℃
Use ambient humidity <98%, no frosting
Weight Net weight 2.85Kg, gross weight: 9Kg
Overall size L310*W140*H230(mm)
