| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001-2008 |
| Model Number: | LY-0604 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000USD/pc |
| Packaging Details: | Carton |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200 sets/Month |
| Application: | Asphalt Test | Standards: | ASTM D5, AASHTO T49 |
|---|---|---|---|
| Display: | Digital, LCD | Temperature Sensor: | Pt100 |

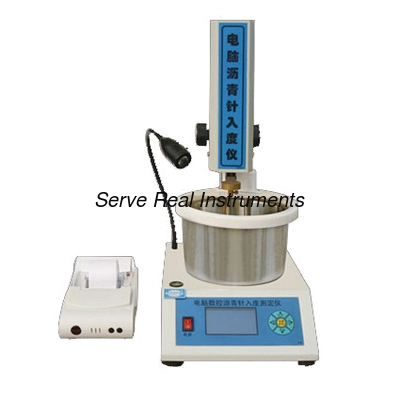

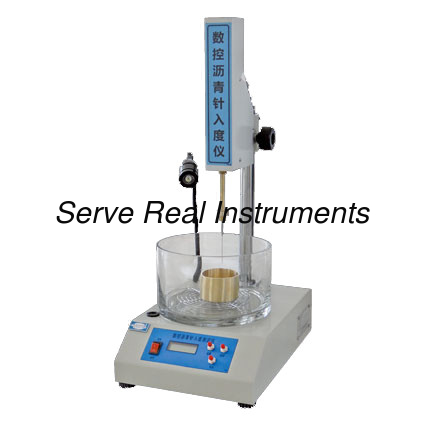

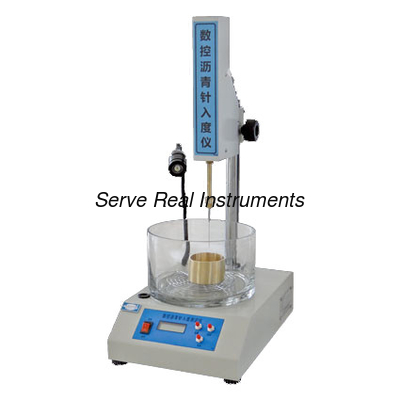

Automatic bitumen penetration test apparatus ASTM AASHTO, Bitumen test equipment
Standards: JTG E20 T2801, ASTM D5, AASHTO T49
Description
This apparatus is mainly used to determine the asphalt needle penetration and petrolatum conical penetration. widely used in food industry, road engineering, and many other industries. Advanced mechanical design, easy regulation of lifting; digital temperature control meter, accurate temperature control, high precision needle penetration digit meter guarantee the reliable results. Advanced machinery design, easy lifting regulation.
Features
Large LCD display
Continuous 3 times test, automatic calculation of average value
The needle assembly can be adjusted within 0-25mm
Penetration rod free adjustment
Pt100 temperature sensor
Can store up to 10 groups test data, free query and print
Cold light source lighting system.
Easy disassembly of needle and rod
Low temperature water bath optional
1. Minimum indexing: displacement 0.01mm time 0.1s temperature: 0.1 ℃
2. Maximum range: 45mm
3. Needle connecting rod, weight, standard needle combined weight: 100 ± 0.05g 200 ± 0.05g (optional)
4. Temperature control accuracy: 0.1 ℃
5. Test dish: copper Φ55 × 35 (standard) copper Φ70 × 45 (optional)
6. Flat-bottomed heat preservation dish: volume ≥1.5L, depth ≥80mm (with test dish holder)
7. Ambient temperature: 5~40 ℃
8. Ambient humidity: ≦ 85%
9. Power supply: AC220V / 50HZ
10. Dimensions: 360x270x490mm
11. Weight: 7.5Kg
12. Power: 300W
