Intelligent LCD display Asphalt Ductility Testing machine ASTM D113

Intelligent LCD display Asphalt Ductility Testing machine ASTM D113

    • Intelligent LCD display Asphalt Ductility Testing machine ASTM D113
    • Intelligent LCD display Asphalt Ductility Testing machine ASTM D113
    • Intelligent LCD display Asphalt Ductility Testing machine ASTM D113
    • Intelligent LCD display Asphalt Ductility Testing machine ASTM D113
  • Intelligent LCD display Asphalt Ductility Testing machine ASTM D113

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: SRI
    Certification: ISO9001-2008
    Model Number: LY-0605I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 3000-4000USD/Set
    Packaging Details: Standard exporting package
    Delivery Time: 5-10 working days
    Payment Terms: T/T, Paypal
    Supply Ability: 200Sets/Month
    Contact Now
    Detailed Product Description
    Display: Touch Screen Data Output: USB, WIFI, WAN
    Data Management: Storage, Print, Export Standards: ASTM



    This ductility tester features more stable, less vibration, better test result, higher efficiency
    7inch color touch screen

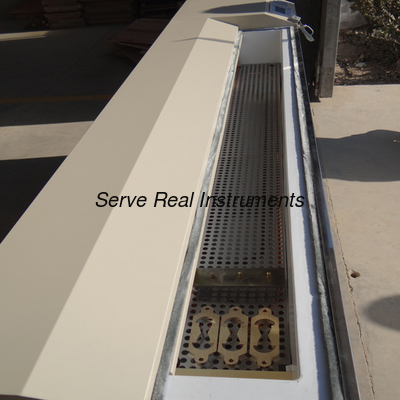

    Stainless steel water trough, dual layer design, heating and refrigeration unit are built inside the layer, when testing, the circulation water pump is closed, reduced the affect to the test.

    Built in powerful software, cover functions of test control, data storage, data inquiry, report print


    Standards: GB/T4508/T0605,JTJ/T06060.JTJ/T0662 ASTM.D113.


    Technical specifications


    Stretch length: 1.5m
    Displacement accuracy: 1mm
    Temperature range: 0~60℃
    Temperature accuracy: <0.1℃
    Stretch rate: 10,50mm/min, self defined
    Force measure channel: 2
    Force measure range: 500N, 0.5%
    Heat power: 4.0KW
    Cooling power: 1.2KW
    Total power supply: 220V±10%, 4.5KW
    Overall size: 2650x454x1120mm
    Net weight: 260Kg





    Features


    Dual independent water trough, inner and outer dual loop water circulation, when testing, can turn off the inner trough water pump, but also can keep constant temperature
    Color touch screen LCD, freely rotation, can be hovered anywhere
    USB data output in Excel format
    No vibration in low speed stretch test
    Independent thermometer guarantee high accuracy to 0.05℃
    Dual channel sync force measurement, curve indication optional
    Stretch, test parameters, test time, force curve indication, data saving, printing, export, automatic calculation of average value
    Easy access to historical data
    Automatic homing, limit machine stop
    Built-in tablet computer, with WIFI, WAN interface
    Software functions: test control, information input, data saving, data query, test report print



    Intelligent LCD display Asphalt Ductility Testing machine ASTM D113Intelligent LCD display Asphalt Ductility Testing machine ASTM D113
