| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB, JTG |
| Model Number: | LCX-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 8000-10000USD/Set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 200Sets/Month |

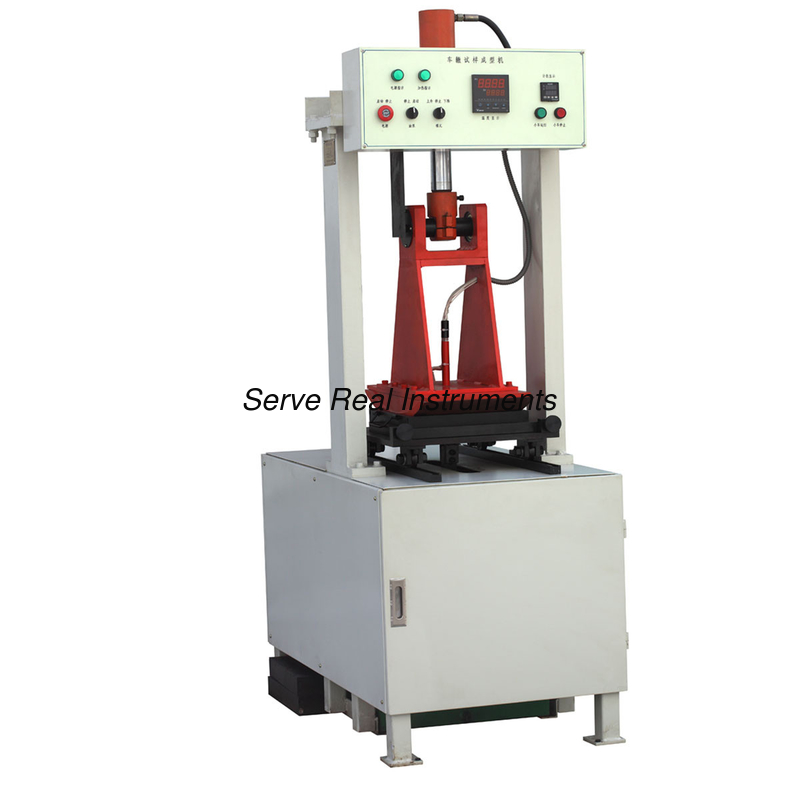

The machine is mainly used for molding of asphalt mixture specimen for the wheel rutting test, it features compact size, highly automatic, multifunctional, easy operation, totally meets the JTJ056-2000 standard.
Features
Free Adjustment Of Rolling Wheel Pressure Within 0-20kn
Free Adjustment Of Mould Height Within 30-100mm
Advanced Mould-Clamping Device, Safety And Easy In Operation
Press Stop Button Can Stop The Car At Any Position
Test Mould Automatic Alignment
Inching Movement Of The Dolly Can Let It Stop At Any Position
Rolling Times Freely Set, Free Recording The Rolling Times, Automatic Stop When Reach The Set Value
Rolling Temperature Free Set, Stop Heating Automatically When Actual Temperature Reached
Technical specifications
|
Test mould size |
300mm×300mm×(30~100)mm |
|
Rolling wheel size |
500mm*30mm(R*W) |
|
Test mould dolly moving speed |
12 /min |
|
Rolling wheel force |
0-20kN, freely adjustment( 9.0kn before delivery) |
|
Rolling wheel compaction liner load control range |
200--700 N/, can be free adjusted. 300N/cm as default. |
|
Rolling wheel compaction liner load control accuracy |
±3 N/Rolling |
|
wheel temperature control range |
RT-200 °C |
|
Rolling wheel temperature control accuracy |
±3 °C |
|
Roll wheel temperature |
20~200 , free set |
|
Overall size |
1750mm×1216mm×640mm |
|
Net weight |
480Kg |
|
Power supply |
AC 380V,50Hz,3Kw |
Standard configuration
Main machine, Standard test mould: 300mm×300mm×50mm/3pcs, Compaction hammer 1pc
