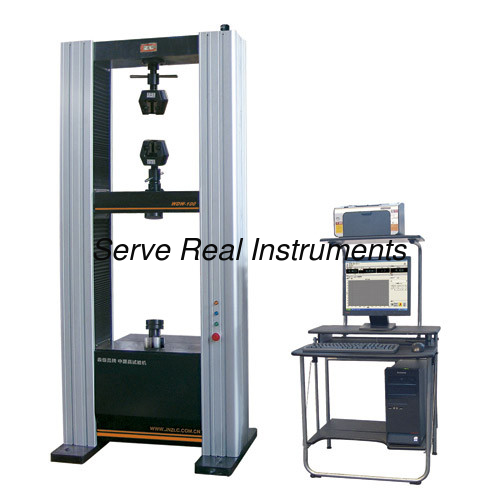

100KN Computerized electric universal testing machine

Contact Now

Detailed Product Description

Application

Material: Metal, nonmetal material

Test type: Tensile, compression, shear, bending

standards: GB/T228-2010, GB/T7314-2005

Structure: Double space, portal frame, upper stretch, lower compression, bending

Features

Electric system: AC servo driver, AC servo motor, overcurrent, overvoltage, overspeed, overload protection device; speed ratio to 1:100000
Upper lower limit, emergency stop function available
Test modes available: constant speed loading, constant speed move, constant speed strain, constant speed loading cycle, constant speed deformation cycle, modes can be switched smoothly.
Electric control circuit features high interference ability, guarantee stable performance of controller
Internet interface equipped, easy for data transmission, storage, print, internet connection

Technical specifications

Spec.	ETM-M
Comprehensive Test Precision	1%
Loading
Test range	0-100kN, 2%-80% , 10/20/50/100 Optional
Resolution	1/200000 F.S
Load Relative Accuracy	±1％(±0.5％)
Deformation index
Max. value	10mm
Measure range	2%-100%
Relative Accuracy	±1％(±0.5％)
Displacement
Relative Accuracy	±1％(±0.5％)
Resolution	0.001mm
Speed	0.005mm/min-500mm/min,stepless speed regulation
Relative accuracy	±1％(±0.5％)
Stretch travel	600mm
Compression travel	600mm
Test width	470mm
Working ambient	10～35℃, 20%～80% RH
