| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |

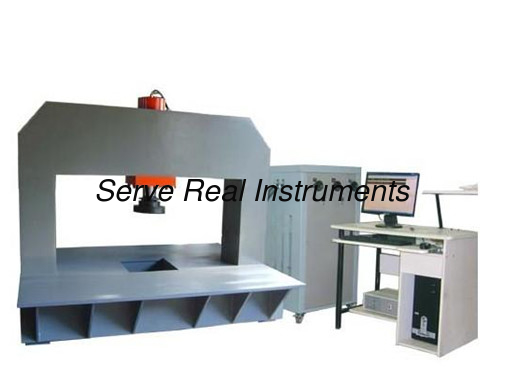

| Model Number: | JGY-1000H |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000USD |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 15 working days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 100 set/month |
Features
Rigid structure, high stability & safety
Easy for sample loading
Special sealing material between oil cylinder and piston, reach high sealing, low friction, long tooling life
Professional oil pump motor, low noise long tooling life
Precision oil filter guarantee always through of the oil pipling
Automatic control, real time display load, peak value, testing information
Real-time record test curve, high speed data acquisition
Professional and human friendly data processing software, real time display of test load, peak value, test curve
Control modes including constant speed stress, constant seed test load, constant load keeping.
Load value automatic reset function available with software avoid human error
Overload protection, automatic unload or stop test
Technical Specifications
|
Term |
JGY-1000H |
JGY-600H |
|
Max test load |
1000KN |
600kN |
|
Effective test space |
1500mm×1500mm |
1500mm×1500mm |
|
Working platform height |
500mm |
500mm |
|
Test load accuracy |
≤±1% |
≤±1% |
|
Loading speed regulation range |
0.1~25KN/S |
0.1~30KN/S |
|
Deformation measuring range |
0~20mm |
0~20mm |
|
Deformation measuring accuracy |
0.01mm |
0.01mm |
|
Piston stroke |
350mm |
350mm |
|
Overload protection limit |
>3%F.S |
>2%F.S |
|
Load indication resolution |
0.1KN |
0.1KN |
|
Loading mode |
Electro hydraulic |
Electro hydraulic |
|
Load control mode |
Computer servo control, manual stepless regulation, automatic programming function |
Computer servo control, manual stepless regulation, automatic programming function |
|
Hydraulic oil |
68#abrasion oil |
68#abrasion oil |
|
Motor power |
1.1KW |
1.1KW |
|
Power supply |
380V/220V, 50Hz |
380V/220V,50Hz |
|
Main machine dimension |
2000mm×1500mm×1500mm(L×W×H) |
1700mm×1200mm×1400mm |
|
Net weight |
3000kg |
2200kg |
Standard Configuration
|
Main machine |
1set |
|
Residue deformation measuring device |
1set |
|
Oil cylinder piston displacement meter |
1pc |
|
Load cell |
1pc |
|
Control oil source |
1set |
|
Computer |
1set |
|
Printer |
1set |
|
Disc |
1pc |
|
Professional software |
1pc |
|
Document |
1pc |
