Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | GB/T |
| Model Number: | GWE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15000-20000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
Features
Description

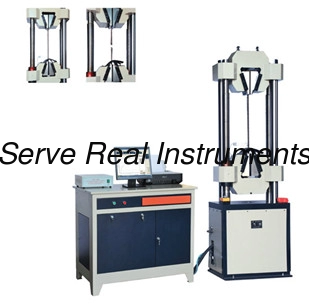

This machine is used to perform mechanics test for steel wire, it can test the steel wire tension strength, non-proportional extension strength, elastic modulus, elongation rate. It’s kind of common material testing machine
Technical specifications
|
Spec. |
GWE-600B |
GWE-1000B |
GWA-600B |
GWA-1000B |
|
Max test load |
600kN |
1000kN |
600kN |
1000kN |
|
Load measuring range |
2%~100%F.S |
|||
|
Testing Load indicating value relative error |
≤±1% |
|||
|
Deformation accuracy |
±0.5%F.S |
|||
|
Tension test space (mm) |
1000 |
|||
|
Compression test space (mm) |
600 |
|||
|
Clamping mode |
Automatic clamping |
|||
|
Round sample clamping diameter(mm) |
15.20( others tailor made) |
|||
|
Upper lower platen size(mm) |
204×204 |
|||
|
Tension test two column distance(mm) |
450 |
550 |
450 |
550 |
|
Net weight (kg) |
2600 |
3000 |
2600 |
3000 |
