Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | CTM-1000/2000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2300 USD/set |
| Packaging Details: | Polywood case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 300 sets/month |
| Power: | Hydraulic | Usage: | Compression Testing Machine |
|---|---|---|---|
| Sea Port: | Shanghai | Power Supply: | AC 380V/ 220V50Hz, 0.75kW |
| Tairlor Made: | Yes | Warranty Period: | 12months |
| High Light: | concrete compression testing machine,construction material testing machine,hydraulic compression testing machine |
||

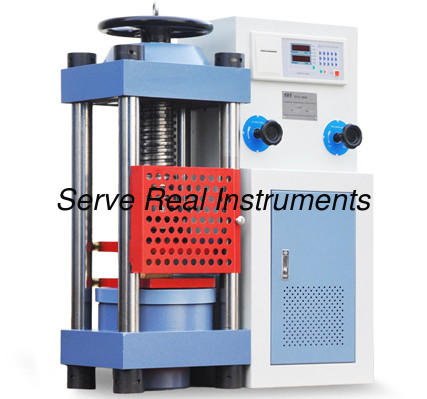

This machine is mainly used for compression strength test of brick, cement mortar and other construction materials, also for other material mechanical test.
Features
| Term | CTM-2000 | CTM-1000 |
| Capacity range(KN) | 0-1000 | 0-2000 |
| Indication value relative error | ±1% | ±1% |
| Bearing platen size(mm) | 220*280 | 220*280 |
| Upper lower platens Max. distance(mm) | 330 | 330 |
| Piston Max. stroke(mm) | 40 | 40 |
| Piston dia.(mm) | φ250 | φ250 |
| Hydraulic pump rated pressure(Mpa) | 40 | 40 |
| Power supply | 220/380V, 50Hz | 220/380V, 50Hz |
| Power | 0.75W | 0.75W |
| Overall size(mm) | 960*460*1170 | 900*400*1150 |
| Net weight(kg) | 800 | 800 |
