| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | GB, ISO |
| Model Number: | ZGX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-4000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5 days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 300Sets/Month |
| Display: | LCD | Controlled By: | MCU |
|---|---|---|---|
| Liner Material: | Stainless Steel | Programmble: | Yes |

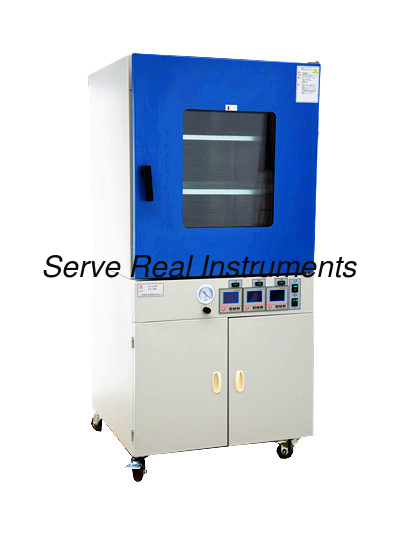

Intelligent LCD Display Vacuum Drying Oven,
Features
Microcomputer temperature control
Heating parts installed on the plates, reduced the heating time compared to traditional cabinets
Large LCD display, easy operation and reading
Aluminum material made for shelf, oxidation resistant under high temperature, fast heat induction, reduced the heat loss
Cuboid working chamber makes maximum working space
Tempered shot-proof Double layer glass door for easy observation, can fill with noble gas inside
Free adjustment of the door tightness, whole shaping silicon rubber doorseal guarantee high vacuum degree of cabinet
Liner made of stainless steel, enclosure made of high quality cold rolling steel sheet with static plastic sprayed
No oxygen or filled with noble gas for storage, heating, test, drying, won’t result oxidation.
Technical Specifications
|
Term |
ZGX-6020 |
ZGX -6050 |
ZGX -6090 |
ZGX -6210 |
ZGX -6500 |
|
Power Supply |
AC220V 50HZ |
||||
|
Temperature Range |
RT+10~250degree C |
||||
|
Temperature Fluctuation |
±1degree C |
||||
|
Temperature Resolution |
0.1degree C |
||||
|
Vacuum Degree |
≤133Pa |
||||
|
Input Power |
450W |
1200W |
1400W |
2200W |
3500W |
|
Working Chamber Size W×D×H(Mm) |
300×300×275 |
415×370×345 |
450×450×450 |
560×600×640 |
630×510×845 |
|
Overall Size W×D×H(Mm) |
615×470×470 |
830×640×540 |
615×660×1440 |
720×805×1680 |
790×1030×1853 |
|
Capacity |
20L |
50L |
90L |
210L |
500L |
|
Support Tray |
Inner Heating, 1pc Fixed Place |
Outer Heating, 2pcs Flexible Plate |
Inner Heating, 2pcs Fixed Plate |
Inner Heating, 3pcs Fixed Plate |
Inner Heating, 4pcs Fixed Plate |
|
Liner Material |
Stainless Steel |
||||
|
Timing Range |
1~9999min |
||||
|
The Vacuum Pump Is Optional Equipped |
|||||
Optional parts
Intelligent controller
Noble gas inlet valve
Air liquids separator
Vacuum drying chamber
Cabinet (6020/6030/6050)
2XZ-2 model Vacuum pump
2XZ-4 Vacuum pump
