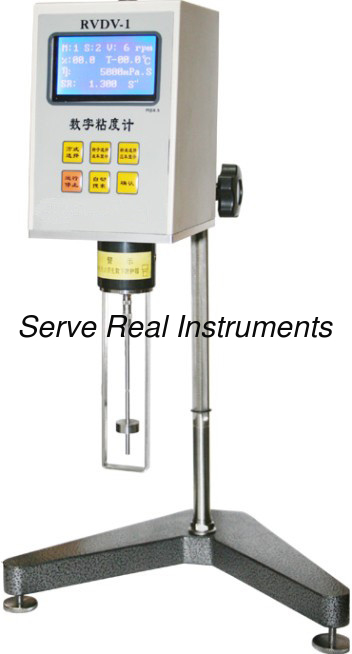

RVDV-1 Digital Rotational Viscometer 300 ~13000000 Mpa.s, Lab general viscometer
Features
1. Large LCD display, can display rotor number, rotational rate, viscosity, torque percent, sample temperature, shear rate, shear stress;
2. Auto-scan function can auto advise the best matching of rotor and rotation rate, thus guarantee high test accuracy
3. Can use multi kinds of rotor: normal rotor(1#,2#,3#,4#), high viscosity rotor(5#,6#,7#)
4. Advanced calibration technology guarantee high accuracy
5. Over-range alarm function
6. Can select temperature measuring probe which can real time measure the sample temperature
7. Equipped with RS232 (or USB2.0 ) interface
8. Equipped with data processing software, real time record the relative change of viscosity along with the shear rate, time, temperature change, thus provide sufficient method to learn the non-Newton liquid viscosity characteristics
Technical specifications
|
Display mode |
backlight LCD display |
|
Rotation speed(r/min) |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 0.5, 1, 2, 2.5, 4, 5, 10, 20, 50, 100 |
|
Normal rotor |
2#,3#,4# ,5#,6#,7#(standard) |
|
Low viscosity rotor |
1# (optional) |
|
Measuring range(mpa﹒S) |
300 ~13,000,000, (2#~7#) The 1# rotor can test viscosity down to 10mPa.S |
|
Measuring error(Newton liquids) |
1% |
|
Repeated test error(Newton liquids) |
±0.2% |
|
Display parameters |
Viscosity, shear rate, shear stress, temperature, rotor number, rotational rate, torque percent |
|
Auto scan function |
Standard |
|
Temperature measuring probe |
Optional |
|
Constant temperature part |
optional |
|
Data interface |
Standard |
|
Power supply |
110V / 220V ,50Hz / 60Hz |
|
Overall size(mm) |
300*300*450 |
Standard configuration
|
Main machine |
1set |
|
|
|
rotor |
1set (2~7#) |
|
|
|
protection frame |
1pc |
Quality certificate |
1pc |
|
warranty card |
1pc |
Operation manual |
1pc |
Optional parts
Viscosity rotor(1#rotor)
Constant temperature cup
Specialized constant temperature bath(oil bath)
Specialized low temperature bath
Standard silicon oil
