| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | GB, ISO |
| Model Number: | CT-YW |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5 days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 300Sets/Month |
| Display: | Digital | Controlled By: | MCU |
|---|---|---|---|
| Test Methods: | NSS Test, SS Test, ASS Test, CASS Test | Working Temperature: | (RT)—55 Degree C |
Introduction

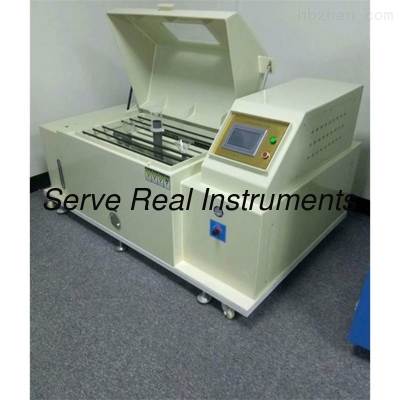

The salt spray testing chamber is used to test the salt spray resistance of materials or products under specific temperature & humidity within a certain time scope, it’s kind of common environmental testing chamber.
Test methods
NSS test, SS test, ASS test, CASS test
Configuration & protection system
l Intelligent high accuracy digital Pid MCU controller
l Quality brand electric parts
l U type corrosion resistance alloy high speed heating pipe
l SNS pneumatic parts
l Second level pressure regulation filter protection
l Tailor made quartz glass nozzle
l Sodium sulphide analytical pure
l Fuse free protection switch
l Testing chamber water leakage protection
l Over temperature protection
l Test running indication
l Test ends indication
l Saline high, low prompt
l Saturator high low level prompt
Technical Specifications
|
Model |
CT-YW150 |
CT-YW250 |
CT-YW750 |
CT-YW010 |
CT-YW016 |
CT-YW020 |
|
Working chamber size (D×W×H)mm |
450×600×450 |
600×900×500 |
750×1100×550 |
850×1300×600 |
850×1600×600 |
900×2000×600 |
|
Temp. range |
Room temperature(RT)—55 Degree C |
|||||
|
Temp. Uniformity |
±2 degree C |
|||||
|
Humidity range |
90～98%R·H |
|||||
|
Temperature fluctuation |
≤±0.5 Degree C |
|||||
|
Sale fog Settling volume |
1--2ml / 80cm2. h |
|||||
|
Spraying mode |
continuous, period free selection(state when ording) |
|||||
|
Temperature sensor |
PT100 |
|||||
|
Timing range |
0-9999 H.M.S |
|||||
|
Spraying time |
0.1-99 H.M.S |
|||||
|
Total power |
1.5KW |
3.0KW |
3.5KW |
4.5KW |
6.0KW |
6.5KW |
|
Power supply |
50Hz / 220V,380V 3 phase 4wire |
|||||
