Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | GB, ISO |
| Model Number: | CT-CL |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 8000-15000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 15 days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 200Sets/Month |
| Display: | LCD | Controlled By: | MCU |
|---|---|---|---|
| Working Temperature: | RT+10~60 Degree C | Programmble: | Yes |
Introduction

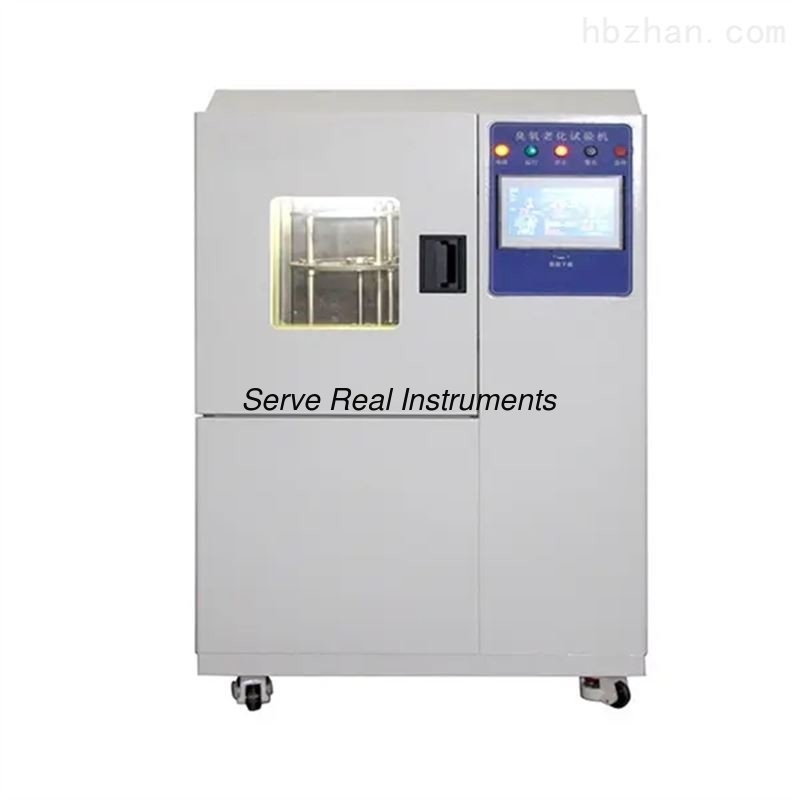

This Ozone aging testing chamber is used to test the Ozone aging resistance of vulcanized rubber, thermalplastic rubber, cable insulated jacket, under the condition of static tensile or continuous dynamic stretch deformation, or alternative of them, meanwhile with constant Ozone concentration and temperature. The Ozone aging resistance is evaluated through the clap on the surface or other characteristics variation.
Technical Specifications
|
Temperature range |
RT+10~60 degree c |
|
Temp. Uniformity |
≤2 degree c |
|
Temperature fluctuation |
±0.5 degree c |
|
Temp. Deviation |
≤±2 degree c |
|
Temperature raise rate |
0.7-1.0 /min |
|
Time setting range |
0~999.9 hrs |
|
Ozone concentration |
0~1000PPHM |
|
Ozone concentration deviation |
±10% |
|
Gas flow rate |
8-16mm/S |
|
Sample frame rotation speed |
(20-25)mm/S(adjustable) clamp elongation rate:5%～35% |
|
Working condition |
|
|
Ambient temperature(degree c) |
5＋28 (average temperature within 24hrs ≤28 |
|
Ambient humidity |
≤ 85% |
|
Power supply |
AC220/380( ±10%)V/50HZ |
