Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | GB, ISO |
| Model Number: | CT-SC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 10000-15000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 15 days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 200Sets/Month |
| Display: | LCD | Controlled By: | MCU |
|---|---|---|---|
| Working Temperature: | RT+10℃~50℃ | Flow Rate: | No Over Than 2m/s |
| Tailor Made: | Yes | Liner Material: | SUS304 |
| Enclosure: | Carbon Steel Sheet |
Description

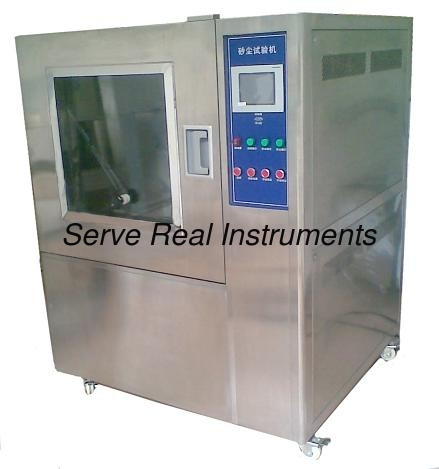

The dust test chamber is specially used to perform environmental test thus provide reference for scientific research, products development, and quality inspection, so as to determine the protection degree (IP) of equipments enclosure. It’s kind of common environmental test chamber.
Technical Specifications
|
Noted |
1. The below data are based on environmental temperature 25℃, and no load with the work chamber 2. Can be tailor made according to user’s specific requirements |
||||
|
Model |
CT-SC-500 |
CT-SC-800 |
CT-SC-010 |
CT-SC-015 |
CT-SC-020 |
|
Work chamber |
800×800 ×800 mm |
800×1000 ×1000 mm |
1000×1000×1000 |
1000×1500 ×1000 |
1200×2000 ×1200 |
|
Power |
3.0kw |
3.5kw |
3.5kw |
5.0kw |
6.0kw |
|
Dust concentration |
Talcum powder 2~4Kg/ m3 |
||||
|
Dust particle size |
1~10um(particle≤5um occupy 50% ) |
||||
|
Test temperature |
RT+10℃~50℃ |
||||
|
Flow rate |
No over than 2m/s |
||||
|
Sieve aperture |
75μm |
||||
|
Test dust |
Dry talcum powder, silicon cement, |
||||
|
Controller |
Imported LCD display, PLC program control |
||||
|
Control mode |
PID+SSR output |
||||
|
Sensor |
PT100Ω/MV |
||||
|
Heating system |
Mica plate heating cycle |
||||
|
Dust blow system |
Centrifuge blower |
||||
|
Protection system |
Electric leakage, short circuit, over temperature, motor overheat |
||||
|
Timing function |
0.1~999.9(S,M,H) adjustable |
||||
|
Enclosure material |
Quality carbon steel sheet, static plastic spray treatment |
||||
|
Liner material |
SUS304 sheet |
||||
|
Door frame sealing |
double layer high low temperature aging resistance silicon rubber sealing strip |
||||
|
Standard accessories |
SUS sample frame 2pcs, test fairlead(Ø50,Ø80,Ø100mm)1set |
||||
