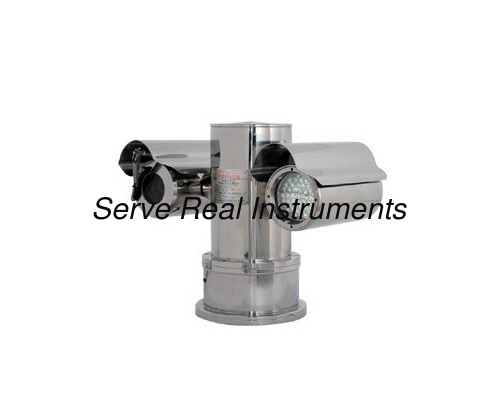

ExdⅡCT6 / DIP A20 TA T6 Explosion-proof infrared intelligent camera

Introduction

-Double certification, suitable for multiple environments

-The shell is made of stainless steel

-Upright installation

-Highly integrated protective cover, gimbal, decoder, camera

-Multiple control protocols, corresponding to multiple control systems

-According to different site conditions, optional infrared LED illuminator, array LED illuminator or laser illuminator can be rotated continuously 360° horizontally +90°～ -90° vertically

-Protection grade reaches IP68

-Contains 128 preset positions

-Indoor and outdoor installation, all-weather use

-Adopt bracket installation or base installation

Specifications

Material Stainless steel 304 or 316L

Protection class IP68

Horizontal rotation 360° continuous rotation

Vertical rotation +90°～ -90°

Horizontal rotation speed 0.1°/S ～ 25°/S

Vertical rotation speed 0.1°/S ～ 25°/S

Unit weight 28.5Kg

Shipping weight 31Kg

Installation method Fixed bracket, base, column

Input voltage 100VAC～240VAC, 50/60Hz

Working current <1A

Power consumption about 100W

Communication method RS-485

Communication rate Various and configurable

Communication protocol compatible with many mainstream control protocols

Number of presets 128

Preset position accuracy ≤0.1°

Automatic heating (optional) starts automatic heating when it is lower than -10℃

Infrared lamp function automatic mode call

Electrical connection 　 3-core cable to connect power

2-core cable connection control signal

Coaxial cable output video signal

Infrared lamp assembly Infrared LED/array LED/laser illuminator optional

Power consumption:

LED power about 20W

Laser illuminator Choose different power lasers according to the projection distance

Projection distance:

LED mode about 100 meters

Laser illuminator 100~300 meters optional

Projection angle

Infrared LED 　 8°

Array LED 　　 25°

Laser illuminator 2°~15°, wavelength 850nm/808nm according to projection distance

Control mode: Automatic light control
