| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001, CE |
| Model Number: | TCY-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD |
| Packaging Details: | Polywood |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C, D/A, D/P |
| Supply Ability: | 100set/month |
| Power Supply: | AC 220V/380V, 50Hz | Application: | Ceramic Test |
|---|
Standards: ISO10545-5:1996, GB/T3010.5-2016
The ceramic tile impact tester is used to test the recovery index of ceramic tile so as to know the impact resistance the tiles.
Specifications
Ball drop height: 1m
Steel ball size:dia.(19±0.05)㎜ chrome steel ball, 2pcs
Time measure accuracy:±1ms
Structure & principle

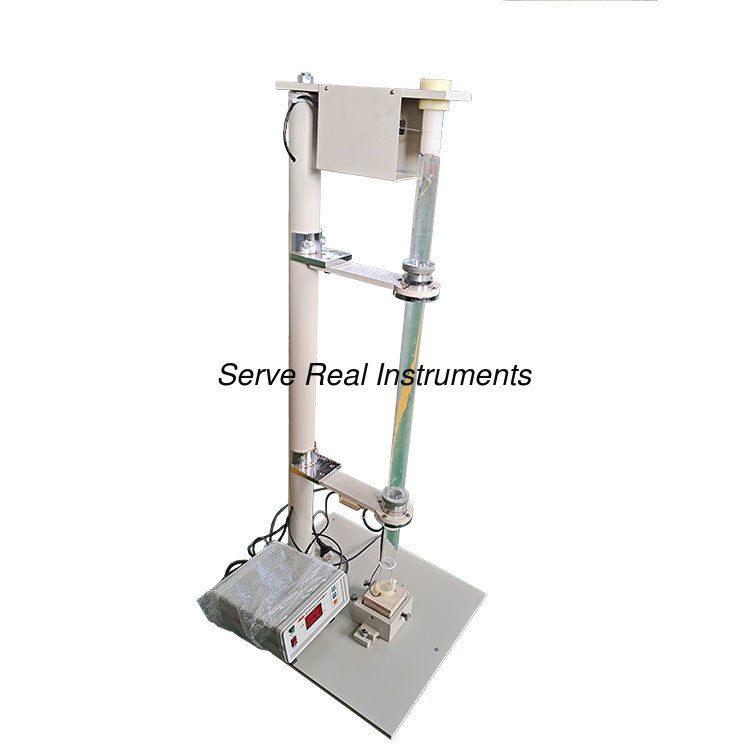

The tester is constructed of steel base, vertical steel frame with hanging electromagnetic block, 1pc guide tube, sample support
The sample is fixed at a position where the steel ball can justly impact on the central position of tile, the space between test tube and the surface should less than 9mm;
Electronic timer is used to record the interval between first impact and the second impact, which is measured by sensor, and the interval will be read on the timer
