ISO10545-11 Ceramic tile Glazed crazing resistance tester autoclave

ISO10545-11 Ceramic tile Glazed crazing resistance tester autoclave

ISO10545-11 Ceramic tile Glazed crazing resistance tester autoclave

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001, CE
Model Number: TKL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2000-3000USD
Packaging Details: Polywood
Payment Terms: Western Union, MoneyGram, T/T, L/C, D/A, D/P
Supply Ability: 100set/month
Contact Now
Detailed Product Description
Power Supply: AC220V/380V, 50Hz Application: Tile Test
Container Size: Ф300×300mm, Ф500×500mm Standards: ISO10545-11

Test standards:

GB/T3810.11-2016, ISO10545-11: 1994


This tester is used to test the crazing resistance of ceramic glazed tiles, it uses electric heater to heat the water thus to generate steam.

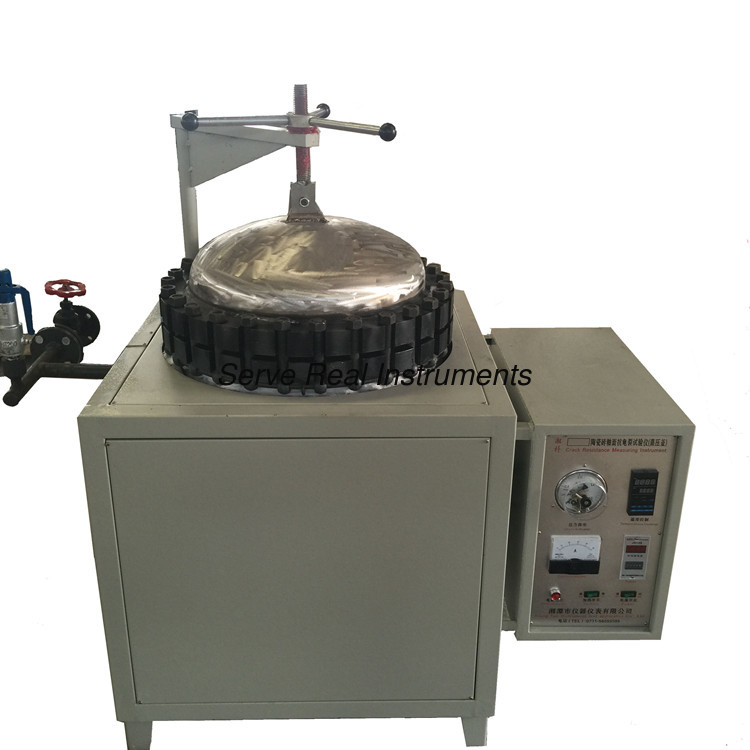

This equipment is mainly comprised of pressure tank, electric contact pressure gauge, safety valve, electric heater, electric control devices and other components, it features compact structure, light weight, high pressure control accuracy, easy operation, reliable running.




Model TKL-260 TKL-300 TKL-500
Container size Ф260×300mm Ф300×300mm Ф500×500mm
Power 4KW 4KW 9KW
Working voltage AC220V, 50HZ AC220V, 50HZ AC380V, 50HZ
Overall dimension 800×600×700mm, Quick-opening flange, more convenient operation


Quick-opening flange, more convenient operation

1450×800×1500mm(L*W*H) Quick-opening flange, more convenient operation
Rated pressure 1.0MPa
Pressure accuracy ±20KPа, Non-contact automatic constant pressure, digital set constant pressure time.


Standard configuration


Main machine 1set, Sample holder 1pc, gasket 1pc, inspection certificate for pressure vessel 1 copy
