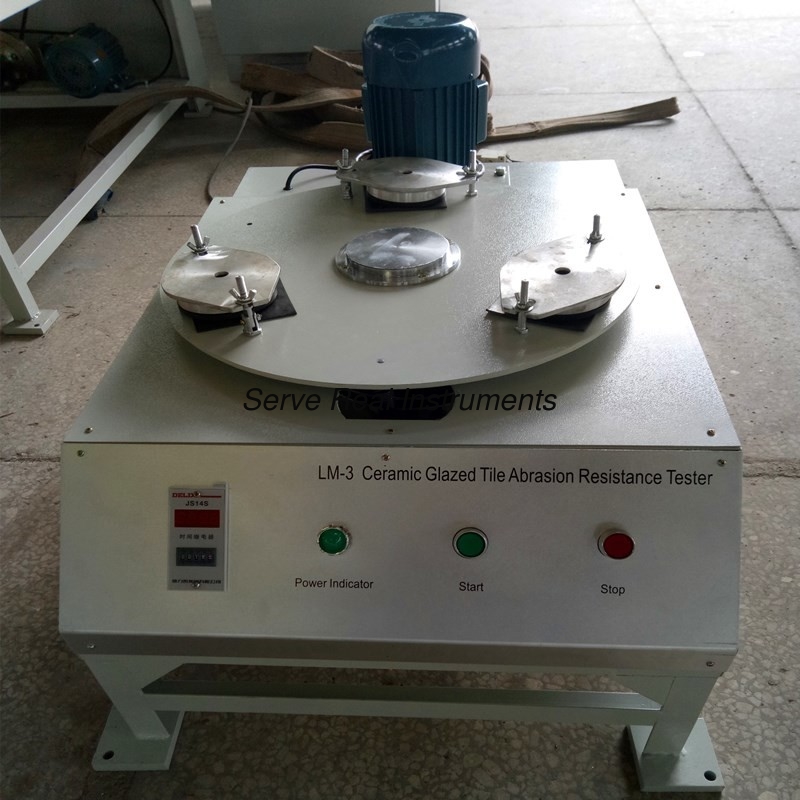

ISO/DIS 10545/7 Glazed Tile Abrasion Tester, Ceramic products test equipment

ISO/DIS 10545/7 Glazed Tile Abrasion Tester, Ceramic products test equipment

ISO/DIS 10545/7 Glazed Tile Abrasion Tester, Ceramic products test equipment

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001, CE
Model Number: LM

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 1000-2000USD
Packaging Details: Polywood
Delivery Time: 5-10 working days
Payment Terms: Western Union, MoneyGram, T/T, L/C, D/A, D/P
Supply Ability: 100set/month
Contact Now
Detailed Product Description
Sample Size: 100*100mm Application: Ceramics Tile Flatness Test
Sample Qty: 3 Or 8pcs Standards: ISO/DIS 10545/7



Standards: ISO/DIS 10545/7-1996, GB/T3810.7-2016



This tester is mainly used for abrasion resistance test of glazed ceramic tile, it’s kind of common construction material testing equipment.



Specifications

  1. Sample size: 100×100mm; can test 3 or 8 samples at a same time
  2. Distance between center and each sample center: 195mm, equal distance between two neighbouring clamps
  3. Supporting plate rated rotation rate: 300±10% rpm
  4. Eccentric distance: e=22.5mm
  5. Clamp: inner diameter Ф83mm, inner height 25.5mm, test area about 54mm2
  6. Motor power: 1.1kw
  7. Power supply: AC 380V±10%, 50HZ±10%
