Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | HPA |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 500-1000USD/set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 500 sets/month |
| Minimum Order Quantity: | 1set |
| Function: | Samples Processing | Category: | General Lab |
|---|---|---|---|
| Force: | 5kn, 12kn | Operation: | Manual |

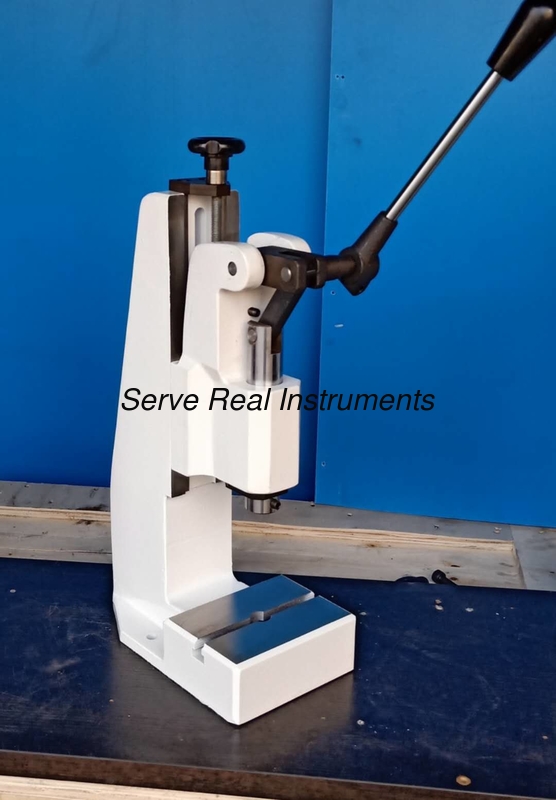

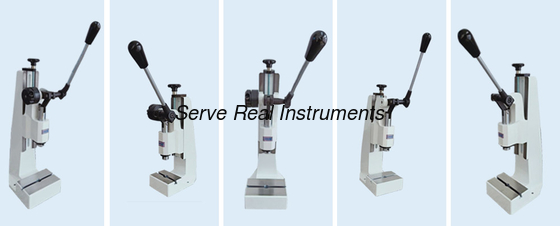

The manual press (toggle press)is suitable for assembly, blanking, cutting, molding, flanging, press-in, straightening, bending and riveting in various kinds of industries, it’s kind of common sample processing equipment.
Nice appearance, high precision and reliable quality. The pressure gradually increases during the pressing process, and the maximum force can reach 1.2T;
Small operating force, large pressure, wide stroke range
The stroke, head height and handle rotation angle are fully adjustable, making installation and debugging more convenient and quicker.
The worktable and the rear guide rail adopt an integrated structure to ensure the guiding accuracy; there will be no problems such as swing, shaking, and inaccurate guiding accuracy during use.
The workbench adopts positioning holes and T-slots, convenient for users to install and replace tooling and workpieces.
Equipped with a stroke stop, and a return self-locking mechanism, pressure sensor and peak value meter are optional for better performance

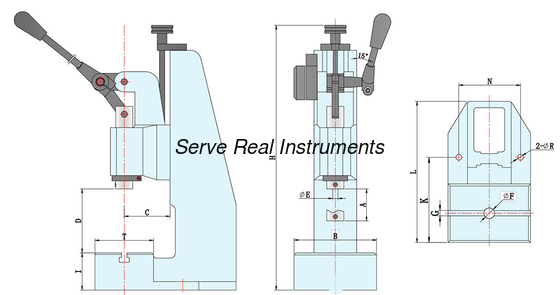

HPA—Link type
| Model |
Pressure KN |
Pressure KG |
Stroke mm | Table Size mm | Spindle Span mm |
Adjustable Height mm |
Mounting Hole mm |
Table Hole mm |
Dimensions mm |
Weight KG |
| HPA-1 | 12 | 1200 | 0-60 | 185*115 | 86 | 120-360 | Φ10H7 | Φ20H7 | 185*265*610 | 31 |
| HPA-1R | 12 | 1200 | 20-60 | 185*115 | 86 | 120-360 | Φ10H7 | Φ20H7 | 185*265*610 | 32 |
| HPA-2 | 12 | 1200 | 0-60 | 150*110 | 86 | 80-265 | Φ10H7 | Φ20H7 | 150*265*500 | 23 |
| HPA-2R | 12 | 1200 | 20-60 | 150*110 | 86 | 80-265 | Φ10H7 | Φ20H7 | 150*265*500 | 24 |
| HPA-3 | 5 | 500 | 0-40 | 110*80 | 65 | 65-180 | Φ10H7 | Φ20H7 | 110*195*410 | 12 |
| HPA-3R | 5 | 500 | 20-40 | 110*80 | 65 | 65-180 | Φ10H7 | Φ20H7 | 110*195*410 | 13 |
HPB-Chain type
| Model | Pressure KN | Pressure KG | Stroke mm | Table Size mm | Spindle Span mm | Adjustable Height mm | Mounting Hole mm | Table Hole mm | Dimensions mm |
Weight KG |
| KN | KG | mm | mm | mm | mm | mm | mm | mm | KG | |
| HPB-1 | 2.5 | 250 | 0-80 | 185*115 | 86 | 145-380 | Φ10H7 | Φ20H7 | 185*265*560 | 31 |
| HPB-1R | 2.5 | 250 | 26-80 | 185*115 | 86 | 145-380 | Φ10H7 | Φ20H7 | 185*265*560 | 32 |
| HPB-2 | 2.5 | 250 | 0-80 | 150*110 | 86 | 120-260 | Φ10H7 | Φ20H7 | 150*265*450 | 23 |
| HPB-2R | 2.5 | 250 | 26-80 | 150*110 | 86 | 120-260 | Φ10H7 | Φ20H7 | 150*265*450 | 24 |
| HPB-3 | 1.6 | 160 | 0-60 | 110*80 | 65 | 60-180 | Φ10H7 | Φ20H7 | 110*195*360 | 12 |
| HPB-3R | 1.6 | 160 | 17-60 | 110*80 | 65 | 60-180 | Φ10H7 | Φ20H7 | 110*195*360 | 13 |
