| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | QPA |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 100-3000USD/set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 200 sets/month |
| Minimum Order Quantity: | 1set |
| Function: | Samples Processing | Category: | General Lab |
|---|---|---|---|
| Force: | 0.5KN TO 60KN | Operation: | Pneumatic |

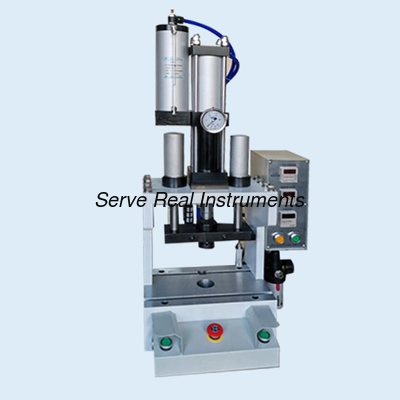

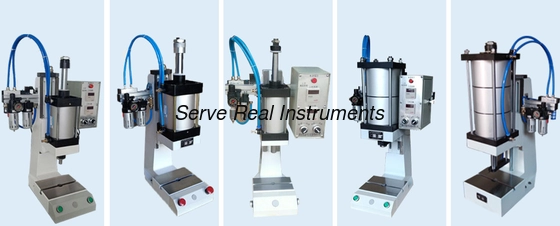

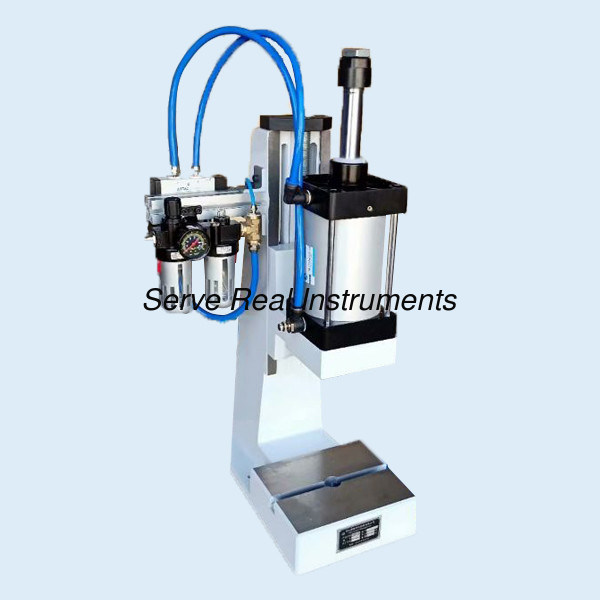

This press machine is suitable for assembly, blanking, cutting, forming, overturning, pressing, riveting, punching, calibration and embossing in many industries such as automobile manufacturing, electronics, electrical appliances, hardware, electromechanical, clocks, instruments, etc. .
Features
1. The machine base is formed by integral casting, with good rigidity, high strength and reliable quality.
2. The machine head and the machine base are connected by high-rigidity rectangular guide rails, which have large bearing energy and high guiding precision.
3. The stroke and the height of the machine head are fully adjustable, which is convenient and quick to install and debug.
4. Equipped with an anti-rotation mechanism to avoid the rotation of the indenter and ensure the guiding accuracy.
5. The user can adjust the up and down speed of the cylinder according to the needs of processing the workpiece.
6. The working times and pressure holding time can be set, and the working times can be recorded at the same time to realize manual and automatic conversion.
7. It is controlled by two-hand button and foot switch, and the user can choose one of them.
Specifications
| Model | Pressure | A | B | L*W | C | D | E | F | H | N | R | U*L*H | G | |
| Total stroke/mm | Adjustable stroke/mm | Table size/mm |
Main shaft span/mm
|
Adjustable height/mm
|
Die handle hole/mm
|
Table hole size/mm
|
Height/mm
|
Installation hole distance /mm | Installation hole diameter/mm | Overall size/mm | T slot width | Net Weight/kg | ||
| QPA-0.5-75-10-M/F | 0.5kn | 75 |
10
|
110*80
|
65
|
0-145 |
12H7*30
|
Ø20
|
360
|
95
|
11
|
260*110*350 | 8 |
17
|
| QPA-0.8-75-10-M/F | 0.8kn | 75 | 0-145 | |||||||||||
| QPA-1.3-75-10-M/F | 1.3kn | 100 |
150*110
|
86
|
80-230
|
450
|
116
|
330*150*450 | 10 |
27
|
||||
| QPA-2-100-10-M/F | 2kn | |||||||||||||
| QPA-3-100-10-M/F | 3kn |
185*115
|
80-330
|
16H7*40
|
560
|
146
|
330*150*560 | 35 | ||||||
| QPA-5-100-10-M/F | 5kn | 37 | ||||||||||||
| QPA-8--100-10-M/F | 8kn |
240*200
|
160
|
145-385 | 20H7*40 |
Ø30
|
680
|
197
|
14
|
480*200*680 | 14 | 77 | ||
| QPA-14-100-10-M/F | 14kn | 125-360 |
25H7*40
|
87
|
||||||||||
| QPA-20-100-10-M/F | 20kn | 300*250 | 200 | 160-400 |
Ø40
|
570*240*680 |
125
|
|||||||
| QPA-27-100-N-M/F | 27kn | 0 | 240*200 | 160 | 125-360 |
Ø30
|
480*200*680 | |||||||
| QPA-40-100-N-M/F | 40kn |
300*250
|
200
|
160-400 |
Ø40
|
740
|
215
|
570*240*740 | 145 | |||||
| QPA-60-100-N-M/F | 60kn | 140-370 | 590*260*740 | 155 | ||||||||||
| For the model without “N” means it has no stroke adjust mechanism, models under 5kN capacity no screw rod adjust mechanism | ||||||||||||||
| M/F: Manual or footer control, choose one of them; Special stroke, span, adjusting height can be custom made | ||||||||||||||
