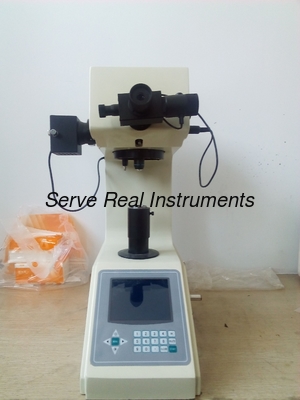

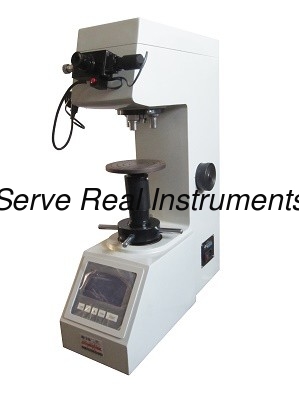

HVS-50 Digital Vickers Hardness Tester, Hardness Testing Machine

HVS-50 Digital Vickers Hardness Tester, Hardness Testing Machine, Material testing equipment

Standards:  GB/T4340.2, ISO6507-2, ASTM E92

Features

Friction free main shaft structure, high test accuracy

Automatic test, easy operation, no human error

Data automatic input, automatic lcd display, printer print test result

Lcd display, menu operation

Ccd imaging system optional

Applications

Carburized layer, ceramic, steel, non-ferrous metal

Thin sheet, metal sheet, galvanized coating

Nitration case, carburized layer, quench hardening layer gradient measurement

Suitable for parallel plane and micro parts & ultrathin parts precision vickers hardness measurement.

Technical specifications

Measuring range: 5-2900HV

Test load: 9.807,49.03,98.07,196.1,294.2,490.3N(1,5,10,,20,30,50gf)

Sample max allowed height: 180mm

Indenter center to machine all distance: 125mm

Measuring system amplification rate: 125X,250X

Min measuring unit: 0.06μm

Overall size: 580*260*730mm

Power supply: AC220V,50/60Hz

Net weight: 90kg

Standard Configuration

Coordinate test bench: 1pc, quill shaft test bench: 1pc, thin sheet test bench: 1pc

Large v shape block: 1pc, small v shape block: 1pc

Diamond pyramid indenter: 1pc

Standard Vickers hardness block:  2pc, standard microscope hardness block: 1pc

Micro Printer: 1pc
