| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | NDJ-S |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-2000USD/Set |
| Packaging Details: | meet standard packing requiments |
| Delivery Time: | 5-7 working days |
| Payment Terms: | TT/Paypal/Western Union |
| Supply Ability: | 500 set/month |
Features
Test data direct display
Microprocessor control, step motor driven,
Wide voltage and frequency range, power fluctuation won’t effect measuring accuracy
Integration structure, easy operation
Ultra-low viscosity adapter ( 0# rotor) available for ultralow viscosity ( 1.0~100.0mpa.s) measurement
Temperature probe optional for sample temperature measurement
Auto-scan function, automatic recommend best suitable combine of rotor and rotation speed
Automatic display the max measuring range of the selected combination
RS 232 or USB 2.0 interface available
Data processing software available( optional)
Technical specifications
|
Model |
NDJ-5S |
NDJ-9S |
NDJ-8S |
|
|
Display mode |
Backlight LCD display |
|||
|
Rotation speed |
6 / 12 / 30 / 60 |
0.3/0.6/1.5/3/6/12/30/60 |
||
|
Measuring range |
1~100000 |
1~2000000 |
||
|
(viscosity value under 10 shall equip 0# rotor) |
||||
|
Rotor |
1 - 4#(standard configuration) |
|||
|
Measuring error |
±1%(Newton liquids) |
±0.5%(Newton liquids) |
±1%(Newton liquids) |
|
|
Temperature measuring function |
Need equip temperature probe |
|||
|
Auto-scan function |
Auto scan and recommend best suitable combine of rotor and rotation speed |
|||
|
Automatic display max measuring range |
Automatic display the max measurable viscosity value of the selected combination |
|||
|
Constant temperature part |
Optional |
|||
|
Data output interface |
Standard configuration |
|||
|
Data processing software |
Standard configuration |
|||
|
Power supply |
110V / 60Hz, 220V / 50Hz |
|||
|
Overall size |
300 × 300 × 450(mm) |
|||
Standard Configuration

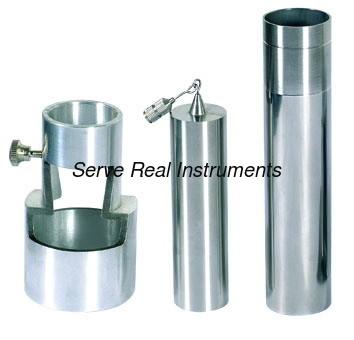

Main machine, frame, rotors(1-4#), Rotor protection frame, user’s manual
