Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO 9001:2008 |
| Model Number: | Lab131 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 4000-8000USD |
| Packaging Details: | Carrying case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 200Sets/Month |
| Standards: | ASTM D2699 ASTM D2700 | Test Index: | Octane Number Cetane Number |
|---|
Model: LAB-131
Standards
Octane number measurement standards: ASTM D2699-86, ASTM D2700-86.
Diesel fuel cetane number measurement standards: ASTM D4737-03, ASTM D613, EN ISO 5165.
It is the latest generation of octane number and cetane number measuring instrument, adopting international
advanced measurement Principle, designed and developed based on the diversity of domestic oil products, can
accurately and quickly detect the octane number and cetane number of oil products.
Digital display in English / Chinese language, large-capacity storage of data and direct printing of measurement data
, user-friendly interface and easy operation, using the original imported chip, the sensor uses alloy metal fully sealed
design, long standby cycle charging, suitable for work On-site, field and laboratory operations.
1. It can detect gasoline octane number and diesel cetane number at the same time.
It can test research octane number, motor octane number, and anti-knock index.
2. The instrument has undergone long-term data collection, the database is complete, and new technologies havebeen incorporated to develop a variety of
Detection mode, which can detect vehicle gasoline, ethanol gasoline, high-octane oil, low-octane oil, methanol
gasoline, national standard diesel, blended diesel, catalytic diesel, biodiesel, etc.
3. Adopt international dielectric constant measurement method
4. Fast detection, accurate operation, simple operation, large screen Chinese display, with EL backlight
Support, convenient to use in dimly lit environments, Chinese menu operation on the host panel.
5. Durable, compact and easy to carry. High quality imported chips and core components, which increases the
sensitivity and tooling life of the instrument. The high-reliability circuit board can be guaranteed for three years. The
sensor is made of fully sealed alloy metal, and the carrying case features high strength, high impact resistance,
absolutely sealed, waterproof, moisture-proof, dust-proof, and a checkered sponge is enclosed.
6. The upper and lower limits can be set in advance, automatically displayed when out of range.
7. Automatic shutdown and energy saving, lower power consumption, 4 rechargeable batteries for recyclable
Charge, better battery reliability.
Technical specifications
| Measuring range of octane number (ON) | 40-120 |
| Maximum measurement error per unit of octane number | ±0.5 |
| Fluctuation per unit of octane number | ±0.2 |
| Cetane number measurement range (CN) | 20-100 |
| Maximum measurement error of cetane number (CN) | ±1 |
| Cetane number measurement result fluctuation range (CN) | ±0.5 |
| Measurement time | <20s |
| Battery low voltage | 2.5 |
| Master unit dimension | 224x106x40 |
| Sensor size mm | 60х100 |
| Net weight | 5Kg |
| Continuous operation time | 15s |
| Output mode | LCD, printer |
| Current | 30ma |

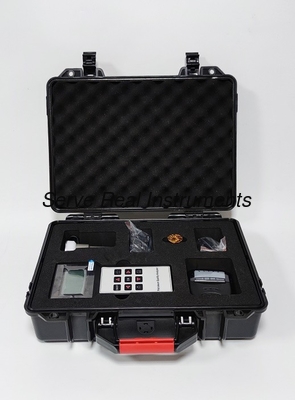

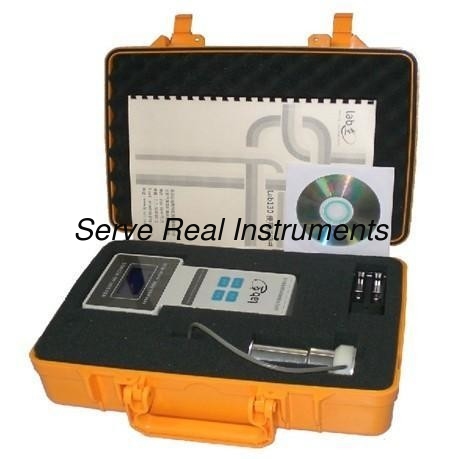

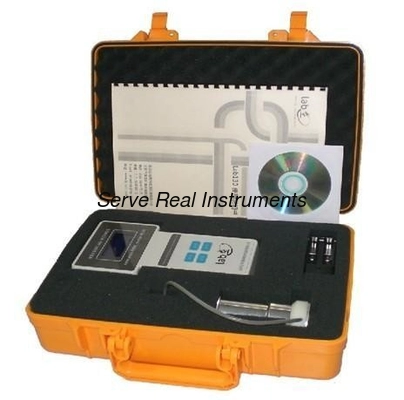

Standard configuration
| Item | Qty |
| master unit | 1set |
| probe | 1pc |
| thermo mini printer | 1set |
| thermo print paper | 1 coil |
| Rechargeable Ni-MH battery | 4pcs |
| Recharge | 1pc |
| Data cable | 1pc |
| user manual | 1pc |
| carrying case | 1pc |
| warranty card | 1pc |
