Place of Origin: | China mainland |
Brand Name: | SRI |
Certification: | ISO 9001 |
Model Number: | TKL |
Minimum Order Quantity: | 1set |
---|---|
Price: | 2000-3000USD |
Packaging Details: | Polywood standard package |
Payment Terms: | T/T, Western Union, MoneyGram, D/A, D/P, L/C |
Supply Ability: | 100Sets/month |
Power Supply: | AC 380V/220V, 50HZ | Application: | Ceramic Test |
---|
Ceramic tile crazing resistance tester autoclave ISO10545-11, ceramic test equipment, ceramic laboratory equipment.
Test standards: GB/T3810.11-2016,ISO10545-11: 1994

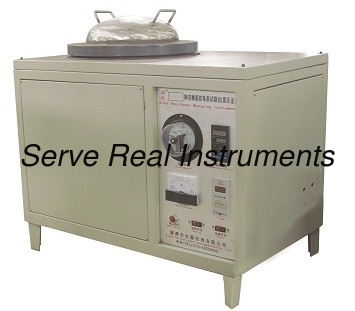

This tester is used to test the crazing resistance of ceramic tiles under ISO 10545-11 standard, uses electric heater to heat the water thus to generate steam, it's kind of common ceramic test equipment.
This equipment is mainly comprised of pressure tank, electric contact pressure gauge, safety valve, electric heater, electric control devices and other components, it features compact structure, light weight, high pressure control accuracy, easy operation, reliable running.
Model | TKL-300 | TKL-500 |
Container size | Ф300×300mm | Ф500×500mm |
Power | 4KW | 9KW |
Working voltage | AC380V, 50HZ | AC380V, 50HZ |
Overall dimension |
800×600×700mm(L*W*H) Quick-opening flange, more convenient operation |
1450×800×1500mm(L*W*H) Quick-opening flange, more convenient operation |
Rated pressure | 1.0MPa | |
Pressure accuracy | ±20KPа, Non-contact automatic constant pressure, digital set constant pressure time. | |
Configurations | One sample holder, 1pc gasket, inspection certificate for pressure vessel |
