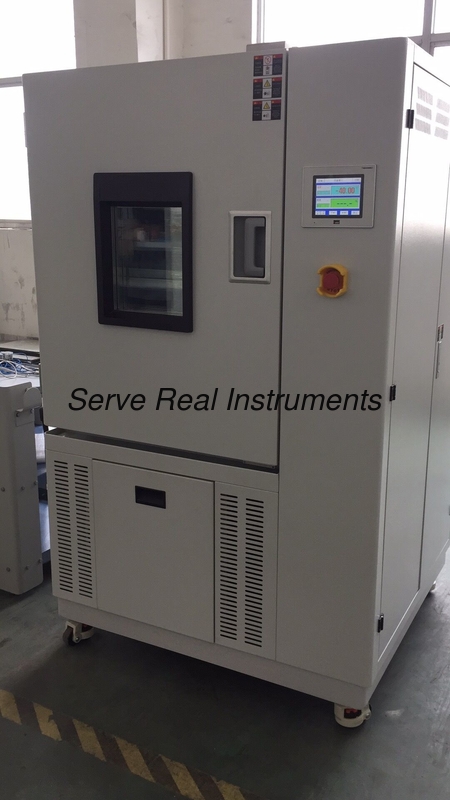

This humidity test chamber is used to determine the withstand ability of laminated glass against the effects of humidity in the atmosphere, the effects of humidity are judged by bubbles, delamination, haze or cloudiness. It’s fully conforms to the EN ISO 12543 standard.
Technical specifications
Size
Inner volume 0.125CBM
Internal size W500mm×D500mm×H500mm
Overall size W1100mm×D1020mm×H1470mm
Test parameter
Test temperature RT+10℃~+100℃
Temperature fluctuation ≤±0.5℃
Temperature uniformity ≤2.0℃
Temperature deviation ≤±2.0℃
Humidity range 85~98%RH
Humidity uniformity 2%~3%
Humidity fluctuation ±2%RH
Humidity deviation ≤2%RH
Construction
chamber material Enclosure: A3 steel with coating
Liner: SUS304
insulation material: Hard polyurethane foam and glass fiber cotton
Heater Nichrome electric wire heater
Control panel Temperature / humidity display, operation button, over-temperature protection device, lamp switch
Gate
Hinged door
Electric heating anti-condensation laminated glass observation window(W200×H300mm)
Electric heating anti-condensation device on door frame
Lamp on the window
Electric control cabinet heat dispersion fan
accumulator(0-9999 hours)
electric panel
electricity leakage breaker
Humidifier Shallow humidification, SUS Armored electric heater
Cooler Air cooler
Water storage tank 15L
