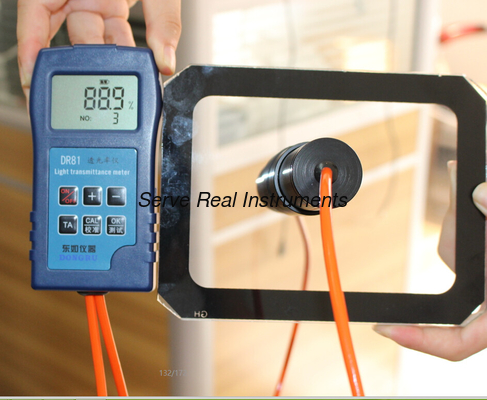

Light transmittance meter

Light transmittance meter

    • Light transmittance meter
    • Light transmittance meter
  • Light transmittance meter

    Product Details:

    Place of Origin: CHINA MAINLAND
    Brand Name: SRI
    Certification: ISO 9001
    Model Number: TG-81

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 500-1000USD
    Packaging Details: Polywood case
    Delivery Time: 3-5 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 200SET/MONTH
    Contact Now
    Detailed Product Description

    This apparatus can be used to measure the transmittance of different kinds of glass, plastic, thin film, or translucent material. Features easy operation, compact size, high accuracy.


    Easy operation, fast measurement, high sensitivity, good measurement accuracy

    Two working mode: single and continue

    4 statistics function: MAX, MIN, MEG, TEST TIMES

    Storage capacity up to 800nos

    PC communication interface available, can save and print date in computer

    Automatic calibration upon power on and manual calibration

    Beep prompt during operation process(single measurement mode)

    LCD with backlight, low voltage indication

    Technical specifications

    Measuring range: 0.0-99.9%

    Sample max thickness: 18mm

    Sample minimum area: 10mm*10mm

    Measuring accuracy: ≤2%

    Resolution: 0.1%

    Meter overall dimension: 130mm*70mm*24mm

    Probe overall size: φ38mm*118mm

    Working power: 7# battery*3pcs

    Operation temperature: 0℃-40℃

    Relative humidity: <85%

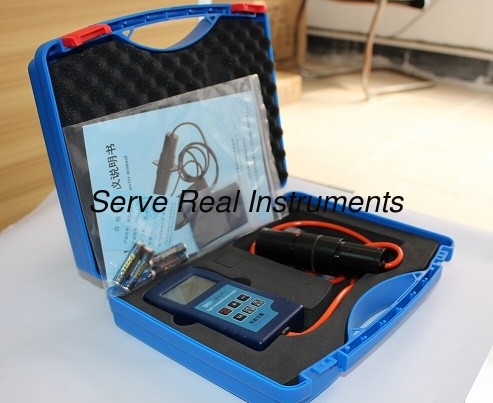

    Standard configuration list


    No. Item Qty
    1 Host 1
    2 Standard sheet 1
    4 Battery 3
    5 User manual 1
    6 Certificate 1
    7 Clean cloth 1
    8 Communication cable and software disc 1 Optional
