Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | BL-FZ-600 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000USD |
| Packaging Details: | Polywooden case |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100Sets/Month |
| Material: | SUS | Application: | Glass Test |
|---|---|---|---|
| Standards: | ISO 12543-4 | Power Supply: | AC 220V/50HZ |
Test standards
GB T7020-86 ISO12543-4-2011

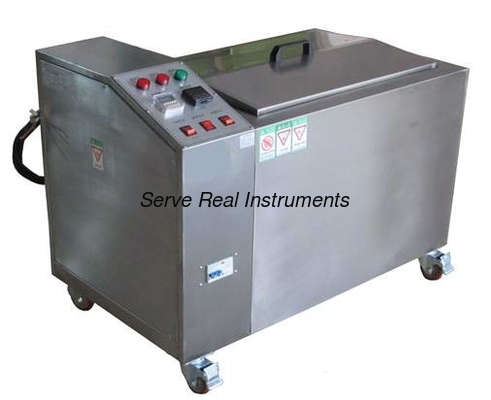

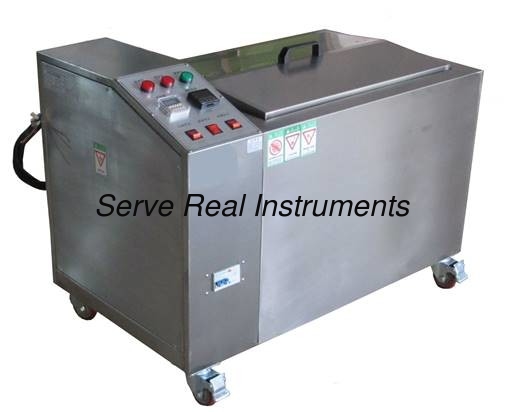

This boilling tank is used to test the moisture resistance and heat resistance of laminated glass, place the galss sample inside the tank and test for 2 hours, observe whether there is bubble or glue-cracking happen.
Technical specifications
Working chamber size: L600×W300×H450
Sample size: 300×500mm
Temperature range: RT+10℃~＋100℃
Temperature fluctuation: ≤±1℃
Temperature uniformity: ±1℃
Temperature deviation: ±2℃
Temperature gradient: ≤1.5K/M
Noise: <60Db when operated under running
Heating power: ≤4.5KW
Temperature raise time:<60min from 0 to 100 ℃
Power supply: AC220V/50HZ
Chamber material: SUS, thickness 1mm
Features
Enclosure: SUS 304 SUS
Liner: SUS304 board
Insulation material: Hard polyurethane foam and glass fiber cotton
Upper open type, door sealing adopts

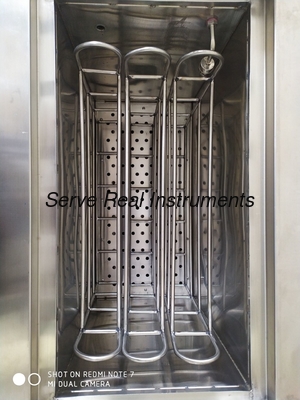

All the place where contact with glass are using nonmetal material, with glass position limit device
Bottom drainage
PID temperature controller, over-temperature alarm
PT100 temperature sensor
Stainless steel electric heater,
Protection function
Anti dry-heating, water lack
Over-temperature automatic power cut off
Electricity leakage
Working condition requirement
Flat ground, good ventilation, sufficient space reserved for further maintance
Ambient condition: 5℃～35℃,≤ 85%RH
Power supply: 220V±10%, 50Hz±1%
