Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | BL-FZ-12543 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 8000USD |
| Packaging Details: | Polywooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50Sets/Month |
| Material: | SUS | Application: | Glass Test |
|---|---|---|---|
| Standards: | ISO 12543-4 | Power Supply: | AC 220V/50HZ |
Standards: EN ISO 12543-4-2011
Introduction

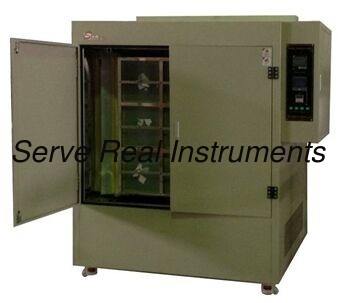

This radiation test chamber is used to perform UV aging test of laminated glass materials, complies to the EN ISO 12543-4 standards, it's kind of common construction glass test equipment.
Technical specifications
Dimensions working chamber size: 1100mm×1100mm×1000mm
Specimen size: 300×300mm, totally 9pcs
Temperature control range: sample surface 45℃±5℃
Light source: OSRAM Ultra-Vitalux1 300W UV lamp; lamp quantity: 16pcs
Total radiation intensity: Total radiation intensity on specimen surface 900W/m2±100 W/m2
Distance from specimen to illuminant: >500mm
Test period: 2000h
Noise: ≤75db
Blower power: ≤25W×4
Compressor power: 2.5HP
Installed power: 9KW
Power supply: AC380V/50HZ, 3-phase 5-wire
