Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | TKL |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000-3000USD |
| Packaging Details: | Polywood standard package |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, D/P, L/C |
| Supply Ability: | 100Sets/month |
| Power Supply: | AC 380V/220V, 50HZ | Application: | Ceramic Test |
|---|

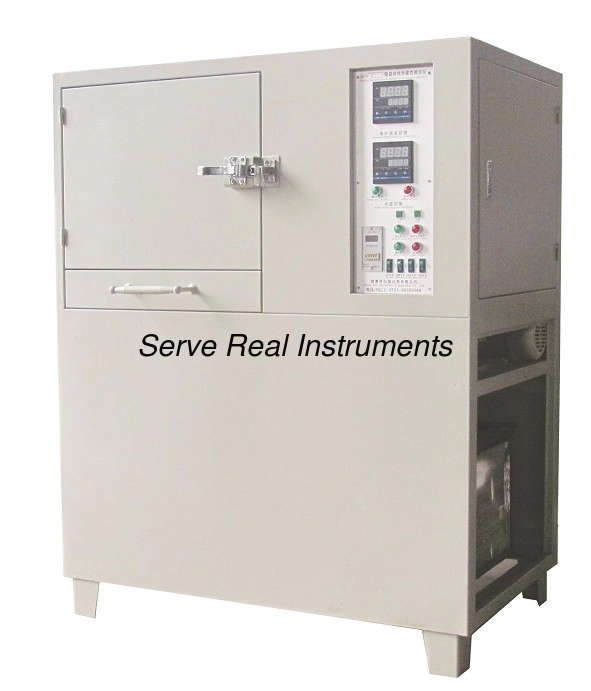

Ceramic tile thermal shock resistance tester ISO10545-9, Ceramic laboratory equipment
Test standards: GB/3810.9-2016, ISO10545-9: 1994, GB/T3298-2008
This equipment is specialized used to test the thermal shock resistance of ceramic tile, it uses Immersion method to test, it also can be used to test glass, silicate products, fireproof materials. Electric lifting device equipped.
Furnace max work temperature: 300℃
Temperature accuracy:< ±5℃
Working chamber size: 300×300×300mm, 600×300×600mm
Cold furnace temperature rise time: 60min(RT-300℃)
Cold material into furnace temperature recovery time: 5 5mins (300℃,7kg)
Water trough temperature control range: 15-50℃
Control accuracy: ±2℃
Water temperature unevenness: ±2℃
Hot material into water temperature rise in 5mins: ±4℃(material temperature 300℃,7kg)
Heat furnace max consumption: 6kw
Water heater max power: 4kw
Compressor power: 2.2kw
Timer range: 0~120mins
Working power supply: AC 380V±10%, 50HZ±10%
Main machine 1set, sample holder 1pc, aluminum plate (optional for Non-immersion test), aluminum particile (optional for Non-immersion test)
