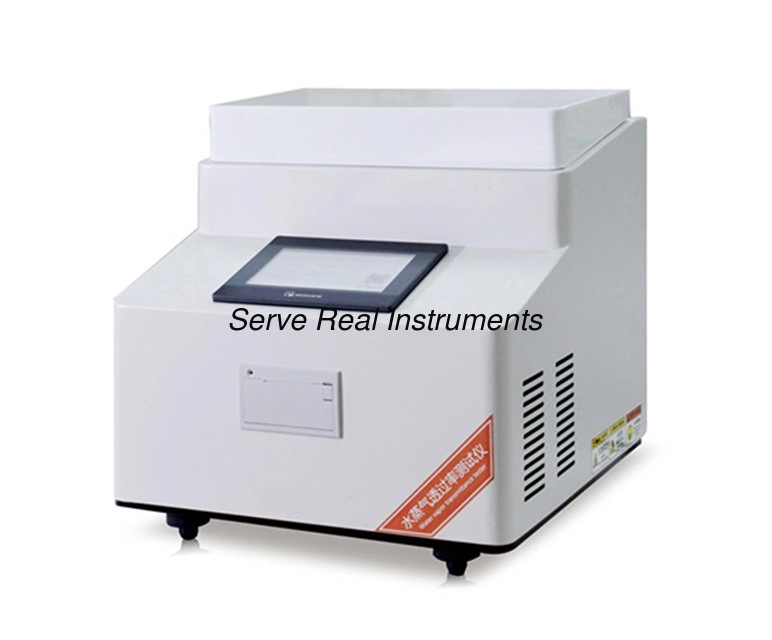

Water vapor transmission rate tester (WVTR) ASTM E96 TAPPI T464 DIN 53122-1

Water vapor transmission rate tester (WVTR) ASTM E96 TAPPI T464 DIN 53122-1

    • Water vapor transmission rate tester (WVTR) ASTM E96 TAPPI T464 DIN 53122-1
    • Water vapor transmission rate tester (WVTR) ASTM E96 TAPPI T464 DIN 53122-1
  • Water vapor transmission rate tester (WVTR) ASTM E96 TAPPI T464 DIN 53122-1

    Product Details:

    Place of Origin: China mainland
    Brand Name: SRI
    Certification: ISO 9001
    Model Number: BZ-WVTR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 15000-20000USD
    Packaging Details: Polywood case
    Delivery Time: 15 working days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 30sets/Month
    Contact Now
    Detailed Product Description
    Standards: ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208 Test Material: Film, Sheet, Paper, Nonwoven
    Customized: No Power Supply: AC 220V, 50HZ



    GB/T 1037, GB/T 16928, ISO 2528, ASTM E96, ASTM D1653, TAPPI T464,DIN 53122-1,JIS Z0208,YBB 00092003


    This water vapor transmission rate tester is suitable for measuring the water vapor transmission rate of plastic films, composite films and other films, sheet materials, and medical and building materials. The test is based on the cup method.



    Weighing method test principle, intermittent weighing that meets the requirements of the standards, the system is automatically cleared before each measurement to ensure the unity and accuracy of the data

    High-definition LCD touch screen, more intuitive in sight and easier operation

    One sample is tested in a single test, the process is fully automated, the lifting and weighing of the moisture permeable cup is controlled by the cylinder, and the data is accurate and reliable

    Innovative circulating dehumidification system, built-in vacuum pump, effectively prevent the formation of humidity gradient above the moisture permeable cup, ensure accurate test

    Wide range, high precision, automatic temperature and humidity control, meeting various test conditions.

    Test results support multi-format storage and data output, including test report Excel, cloud sharing

    Provide standard weight quick calibration mode, weighing system to ensure the accuracy of test data

    Complies with the third-level authority of GMP users

    Can carry out single and group statistical analysis of test results

    With ISP online control and upgrade functions, the test function can be changed remotely as required

    Special computer communication software, real-time display of test, data analysis and processing, data storage



    Model BZ-WVTR-01 BZ-WVTR-04
    Test Range 0.01 ~ 10,000 g/m2·24h(normal) 0.1 ~ 10,000 g/m2·24h(normal)(Customizable weight gain mode)
    Number of samples 1pc(Single cavity) 1 ~ 4 (Independent data)(can customize ≤8)
    Test accuracy 0.01 g/m2·24h 0.01 g/m2·24h
    System resolution 0.0001 g 0.0001 g
    Test temperature 15°C ~ 65°C(normal) 10°C ~ 55°C(normal)
    Temperature control accuracy ±0.5°C ±0.5°C
    Test humidity 10%RH ~ 98%RH(standard 90%RH) 10%RH ~ 90%RH
    Humidity control accuracy ±1%RH ±2%RH
    Blowing wind speed 0.5 ~ 2.5 m/s (Non-standard optional) 0.5 ~ 2.5 m/s (optional)
    Test area 33.18 cm2 33.18 cm2
    Specimen thickness ≤ 3 mm (other thickness can be tailor made) ≤ 3 mm(Other thickness requirements can be customized)
    Specimen size Φ74 mm Φ72 mm
    Connection size Ф6 mm PU tube Ф6 mm PU
    Dimensions 440 mm (L) × 450 mm (W) × 450 mm (H) 500 mm (L) × 500 mm (W) × 550 mm (H)
    power supply AC 220V 50Hz AC 220V 50Hz
    net weight 42 kg 42 kg



    Host, professional software, breathable cup, gas drying device, automatic drying filter, test weight, communication cable, sampler, quantitative dropper, gloves

    Options: standard membrane, air compressor, drying container, 4A molecular sieve

    Remarks: The air source inlet of this machine is Ф6mm polyurethane tube; the air source and distilled water are provided by the user
