Serve For Real Test
Serve For Real Test
 |
| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | BZ-SST-01 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-5000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20sets/Month |
| Standards: | ISO 11607-1 ISO 11607-2 ASTM F1140 ASTM F2054 | Test Material: | Packagings |
|---|---|---|---|
| Customized: | No | Power Supply: | AC 220V, 50HZ |
Standards: GB/T 10440, GB/T 18454, GB/T 19741, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002, ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2

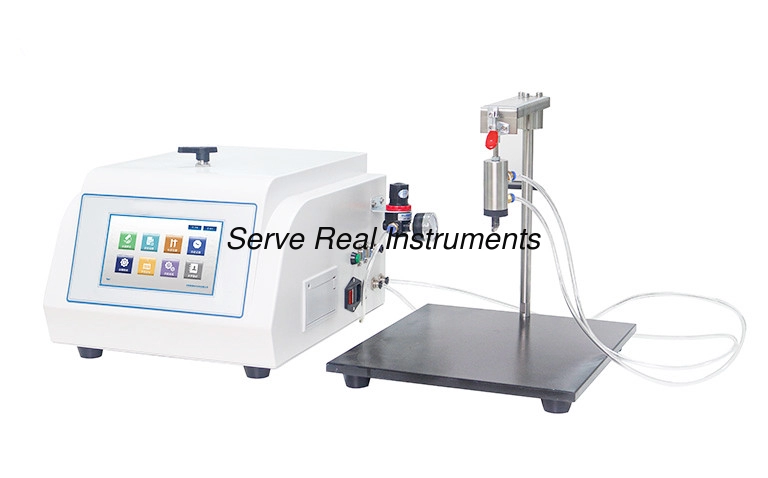

This apparatus is mainly used to test the sealing quality and bursting strength of various kinds of soft packaging by positive pressure method.
Positive pressure method test: after the gas with certain pressure is filled into the sample by setting parameters, the pressure sensor is used to detect the pressure change inside the sample to judge the overall sealing performance of the sample, and the pressure resistance and bursting performance of the sample are tested with the specified air pressure.
7-inch touch screen control
Positive pressure design principle, simple operation, stable and reliable performance
Optional test range, wide test range and wide application field
Double test method for expansion inhibition and expansion non-suppression
Multiple test mode selection from rupture test, creep test, creep to rupture test
"One key" operation in the test process, intelligent and high test efficiency
Test data high-definition touch screen operation, automatic statistics and printing of results
Test attachment support, flexible test mode, and diversified compatibility
Automatic pressure regulation test mode, automatic flow leak detection function
Standard USB interface configuration, computer software support, and result display in multiple units
The product complies with GMP user multi-level permissions
The test curve shows the change trend of force value during the test in real time
Special computer communication software can be used for real-time display of test, data analysis and processing, and data storage
| Test range | 0～1MPa |
| 100 kPa,400 kPa,600 kPa,1.6MPa(optional) | |
| Test accuracy | 0.5% (0.25% optional) |
| Pressure readout | 0.001 kPa |
| Gas filling head | Ф10 mm (custom made) |
| Gas filling flow | 0.01 ~ 10 L/min (optional) |
| Pressure holding time | 1 ~ 99999 s |
| air source pressure | 0.5MPa ~ 0.9MPa (air source self-prepared) |
| Air source joint size | Ф6mm Polyurethane pipe |
| Function expansion | Automatic pressure regulation and flow leak detection function (optional) |
| Overall dimension | 320 mm(L)× 400 mm(B)× 265 mm(H) |
| Test seat size | 305 mm(L)× 356mm(B)×325mm(H) |
| Power Supply | AC 220 V 50 Hz |
| Net weight | 23 kg |
